Temperature is the universal warning signal for trailer problems. Overheating tires, failing bearings, dragging brakes, overloaded axles — they all manifest as abnormal heat before they become smoke, noise, or catastrophic failure. A trailer temperature monitoring system gives you real-time visibility, turning invisible problems into actionable alerts.
This guide covers what temperature monitoring measures, why it matters more than most owners realize, and how to choose a system that provides complete coverage.
What a Temperature Monitoring System Tracks
| Temperature Source | What It Reveals | Normal Range | Danger Zone |
|---|---|---|---|
| Internal tire temperature | Inflation, speed, load | 100–160°F | 195°F+ |
| Axle/hub temperature | Bearing condition, brake drag | 90–140°F | 175°F+ |
| Brake drum temperature | Brake adjustment, dragging | 100–200°F | 350°F+ |
| Differential between positions | Asymmetric problems | <15°F variation | >30°F variation |
The most powerful metric isn't absolute temperature — it's differential temperature. When one wheel runs 30°F hotter than the others, something is wrong at that specific position. This comparative analysis is what makes multi-point monitoring so valuable.
Three Levels of Trailer Temperature Monitoring
Level 1: Manual Checks (Free, Unreliable)
Hand-on-the-hub at rest stops. Problems: you can only check when stopped, heat dissipates quickly, you can't safely touch dangerously hot hubs, and you have no comparison data. Most owners abandon this after a few trips.
Level 2: TPMS Only (Partial Coverage)
Standard TPMS measures internal tire air temperature. This catches underinflation-related heat and extreme overloading. But it completely misses bearing failures and brake drag — the sensor is inside the tire, not on the axle. You're monitoring half the equation.
Level 3: TPMS + Axle Monitoring (Complete Coverage)

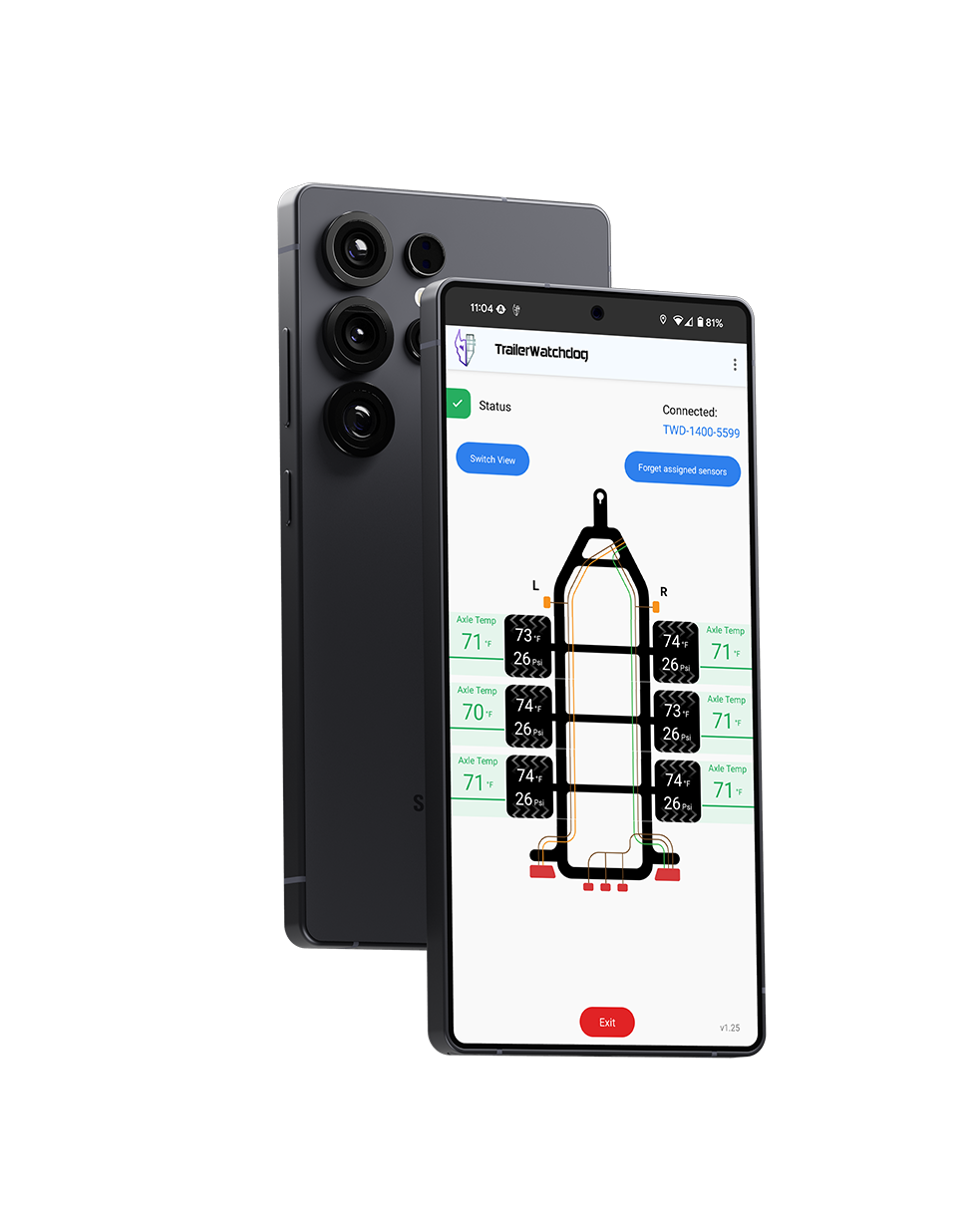

Systems like the TrailerWatchdog TWD-1500 monitor both tire pressure/temperature AND axle hub temperature. The axle sensor mounts magnetically, directly measuring bearing housing temperature. This catches:
- Bearing failure: 15–30 minutes before critical temperature
- Brake drag: Stuck caliper or misadjusted drum heats the entire hub
- Overloading: Consistently elevated temps across all positions
- Lubrication failure: Dry bearings generate heat rapidly
How Bearing Failure Escalates: A Timeline
| Time | Axle Temp | What's Happening | Detectable By |
|---|---|---|---|
| T+0 min | 140°F | Bearing starts to fail | Nothing yet |
| T+10 min | 175°F | Grease thinning, friction up | ✅ TWD-1500 alert |
| T+20 min | 220°F | Grease failing, metal-on-metal | ✅ Critical alert |
| T+30 min | 300°F | Bearing welding to spindle | ⚠️ Smell (maybe) |
| T+35 min | 400°F+ | Hub glowing, grease fire risk | 👁️ Visible smoke |
| T+40 min | 500°F+ | Wheel separation imminent | 💥 Too late |
The TWD-1500 gives you that T+10 minute alert. Without it, most owners don't notice until T+30 or later — when the damage is already done and costs are $2,500–$5,000+.
Temperature Monitoring for Different Trailer Types
Travel Trailers and Campers
Extended storage means bearings sit idle for months. Tires age-degrade faster than they wear. Temperature monitoring catches the post-storage bearing that didn't survive winter sitting and the tire that's running hot from UV degradation.
Boat Trailers
Every boat launch submerges hot bearings in water, pulling moisture past seals. Temperature monitoring is essential for boat trailers — it catches the water-contaminated bearing before it seizes. The TWD-1500's IP67 rating handles the marine environment.
Protect your trailer
-
TWD-1500 — Smart Trailer Monitoring System
Regular price From $395.00Regular priceUnit price per -
TWD-1500 Commercial & Fleet — Heavy-Duty Trailer Monitoring
Regular price From $695.00Regular priceUnit price per
Utility and Cargo Trailers
Frequent loading/unloading means variable weights and occasional overloading. Temperature patterns reveal when you're consistently pushing axle capacity. The LoadMaster system handles multi-axle commercial setups.
Horse and Livestock Trailers
Live cargo makes breakdowns more than inconvenient — they're dangerous for the animals. Temperature monitoring provides the earliest possible warning, giving you maximum time to pull over safely. The EquiGuard system is purpose-built for this.
Choosing the Right System
| Your Trailer | Recommended System | Price |
|---|---|---|
| Travel trailer / camper | TrailerWatchdog Adventure | $395 |
| Boat trailer | TrailerWatchdog Mariner | $395 |
| Horse / livestock trailer | TrailerWatchdog EquiGuard | $395 |
| Utility / cargo (heavy duty) | TrailerWatchdog LoadMaster | $495 |
| Commercial / multi-trailer fleet | TrailerWatchdog RoadCommand | $595 |
All systems feature the TWD-1500 sensor platform: magnetic mount, IP67 waterproof, Bluetooth 5.0, smartphone app, and no monthly subscription. Made in the USA in Ijamsville, MD.
Protect Your Trailer with Smart Monitoring
The TrailerWatchdog LoadMaster combines TPMS + axle temperature monitoring in one magnetic, IP67-rated sensor. Made in the USA. Starting at $495.
Shop the LoadMaster →Frequently Asked Questions
What temperature indicates a trailer bearing problem?
Normal axle operating temps are 90–140°F. If one position reads 175°F+ while others are normal, that bearing may be failing. A 30°F+ differential between positions on the same axle is a red flag.
Can temperature monitoring prevent trailer fires?
Yes. Most trailer fires start from bearing failure or brake drag, both of which generate extreme heat detectable by axle sensors 15–30 minutes before ignition temperature. Early alerts give you time to stop safely.
How accurate are axle temperature sensors?
The TWD-1500 magnetic axle sensor reads within ±2°F of hub surface temperature. Because it contacts the hub directly, it provides accurate, real-time data rather than the indirect readings from IR guns or tire-only sensors.
Do I need temperature monitoring if I already have TPMS?
Standard TPMS monitors only tire pressure and internal tire temperature. It misses bearing failures and brake drag entirely. Axle temperature monitoring catches the problems TPMS can't see — which account for a significant portion of roadside breakdowns.
What's the difference between TrailerWatchdog products?
All use the same TWD-1500 sensor platform. The difference is configuration and packaging for specific trailer types: Adventure (travel trailers), Mariner (boats), EquiGuard (horses), LoadMaster (heavy duty), Utility (general), and RoadCommand (commercial fleets).
