Wheel bearing failure is the second most common cause of trailer breakdowns — right behind tire issues. Unlike tires, bearings give subtle warnings that are easy to miss until the situation turns critical. A seized bearing can generate enough heat to melt the hub assembly, destroy the spindle, and even cause a wheel-off accident at highway speed.
This guide covers exactly how to maintain your RV trailer wheel bearings: inspection schedule, greasing procedure, when to replace, and how monitoring technology can catch failures before they become catastrophes.
How Trailer Wheel Bearings Work
Each trailer wheel hub contains two tapered roller bearings — an inner (larger) and outer (smaller) — that allow the wheel to spin freely on the axle spindle. These bearings are packed in grease that provides lubrication and dissipates heat. When the grease breaks down, gets contaminated with water, or runs dry, the metal rollers grind against the races, generating extreme friction and heat.
A healthy bearing at highway speed runs at roughly ambient temperature plus 20–40°F. A failing bearing can reach 300–500°F — hot enough to melt the grease seal, destroy the hub, and ignite the tire.
Maintenance Schedule
| Maintenance Task | Frequency | Notes |
|---|---|---|
| Visual inspection (hub temp, grease leaks) | Every trip | Touch the hub after driving — it should be warm, not hot |
| Repack bearings with grease | Every 12 months or 12,000 miles | Whichever comes first; annually for seasonal trailers |
| Inspect and replace seals | Every repack | Always replace seals when repacking |
| Replace bearings and races | Every 2–3 repacks or when worn | Inspect for pitting, scoring, discoloration |
| Check bearing adjustment | Every repack | Correct preload is critical |
| Full hub assembly replacement | As needed | When races are scored or hub is heat-damaged |
Boat trailer owners: Double the frequency. Water intrusion from ramp launches is the #1 bearing killer. If you submerge your hubs, repack annually at minimum — some boat owners do it every 6 months.
Tools and Supplies Needed
| Item | Purpose | Approximate Cost |
|---|---|---|
| Jack and jack stands | Safely lift trailer | $30–$80 |
| Socket set (standard sizes) | Remove dust cap, castle nut | $20–$50 |
| Channel-lock pliers | Remove dust cap | $10–$20 |
| Needle-nose pliers | Remove cotter pin | $5–$10 |
| Bearing packer tool (or do by hand) | Pack grease evenly into bearings | $15–$25 |
| High-temp wheel bearing grease | Marine-grade recommended | $8–$15 per tube |
| New grease seals | Always replace when repacking | $5–$15 per seal |
| New cotter pins | Never reuse cotter pins | $3–$5 per pack |
| Shop towels / rags | Clean old grease | $5–$10 |
| Parts cleaner or mineral spirits | Clean bearings and races | $8–$15 |
Step-by-Step: Repacking Trailer Wheel Bearings
Step 1: Safely Lift and Support the Trailer
Chock the opposite wheels. Jack the trailer and place on jack stands — never work under a trailer supported only by a jack. Remove the wheel.
Step 2: Remove the Dust Cap
Pry off the dust cap (also called hub cap or grease cap) with channel-lock pliers or a flat screwdriver. Work it off gently to avoid deforming it. Some trailers use EZ Lube caps with a zerk fitting — these use a different greasing process (see note below).
Step 3: Remove the Cotter Pin and Castle Nut
Straighten and pull out the cotter pin with needle-nose pliers. Discard it — never reuse cotter pins. Unscrew the castle nut (also called spindle nut).
Step 4: Remove the Hub Assembly
Carefully slide the hub off the spindle. The outer bearing and washer will come out as you pull the hub. Catch them — don't let them fall in the dirt. Set the hub on a clean surface, brake drum/rotor facing up.
Step 5: Remove the Inner Bearing and Seal
The inner bearing is held in by the grease seal. Pry out the seal from the back of the hub (it will be destroyed — that's normal, you're replacing it). Remove the inner bearing.
Step 6: Clean Everything
Clean both bearings, both races (still pressed into the hub), the spindle, and the inside of the hub with parts cleaner or mineral spirits. Remove ALL old grease. Let everything dry completely.
Step 7: Inspect for Damage
This is the critical step. Examine each bearing and race for:
- Pitting: Small craters in the rollers or races — replace both
- Scoring: Grooves or scratches — replace both
- Discoloration: Blue or brown tint means heat damage — replace both
- Rough rotation: Spin the bearing by hand — it should rotate smoothly
If in doubt, replace. Bearings are cheap ($10–$30 per set). Hub assemblies and spindles are not.
Step 8: Pack the Bearings with Grease
Using a bearing packer tool or by hand, force high-temperature wheel bearing grease into the bearing from the large end until it squeezes out evenly around the small end. Every roller must be fully surrounded by grease. Use marine-grade grease for any trailer that sees water.
Step 9: Reinstall Inner Bearing and New Seal
Place the greased inner bearing into its race in the hub. Apply a thin coat of grease to the new seal lip and press the seal squarely into the hub. Use a seal driver or a flat piece of wood and hammer — don't cock it. The seal should sit flush.
Step 10: Reinstall the Hub
Slide the hub onto the spindle carefully — don't drag the seal across the spindle. Install the outer bearing, washer, and castle nut.
Protect your trailer
-
TWD-1500 — Smart Trailer Monitoring System
Regular price From $395.00Regular priceUnit price per -
TWD-1500 Commercial & Fleet — Heavy-Duty Trailer Monitoring
Regular price From $695.00Regular priceUnit price per
Step 11: Adjust the Bearing Preload
This is where many DIYers go wrong. The standard procedure:
- Tighten the castle nut to 15–20 ft-lbs while rotating the hub to seat the bearings
- Loosen the nut completely
- Re-tighten to finger-tight (just snug, no wrench)
- Back off 1/6 to 1/4 turn until the nearest cotter pin hole aligns
- Install a new cotter pin and bend the ends
The hub should spin freely with no detectable play when you grab the tire at 12 and 6 o'clock and rock it. Slight resistance is OK — binding or grinding is not.
Step 12: Replace the Dust Cap and Wheel
Tap the dust cap back on evenly. Reinstall the wheel, torque the lug nuts to spec, and lower the trailer. Recheck lug torque after 25–50 miles of driving.
EZ Lube Hubs: A Shortcut (With Caveats)
Some trailer hubs have EZ Lube zerk fittings that allow you to pump grease through the hub without disassembly. This is better than nothing, but it has limitations:
- You can't inspect the bearings for damage
- New grease may not fully displace old contaminated grease
- Water contamination won't be detected
Recommendation: Use EZ Lube between full repacks, but still do a full disassembly and inspection annually.
Signs Your Bearings Need Attention NOW
- Hub is hot to the touch after driving (more than just warm)
- Grinding or growling noise from the wheel area
- Wheel wobble when you grab it and rock it
- Grease leaking from the dust cap or backing plate
- Burnt grease smell near the wheels
- Uneven tire wear on one side
If you notice any of these, stop towing and inspect immediately. Continued driving on a failing bearing can result in spindle damage, wheel-off, or fire.
How Axle Temperature Monitoring Catches What Inspections Miss
The challenge with bearing failure is the timeline. A bearing can go from "slightly warm" to "catastrophically hot" in 10–20 minutes of highway driving. Your pre-trip inspection was 2 hours ago. You can't feel it. You can't hear it over road noise.

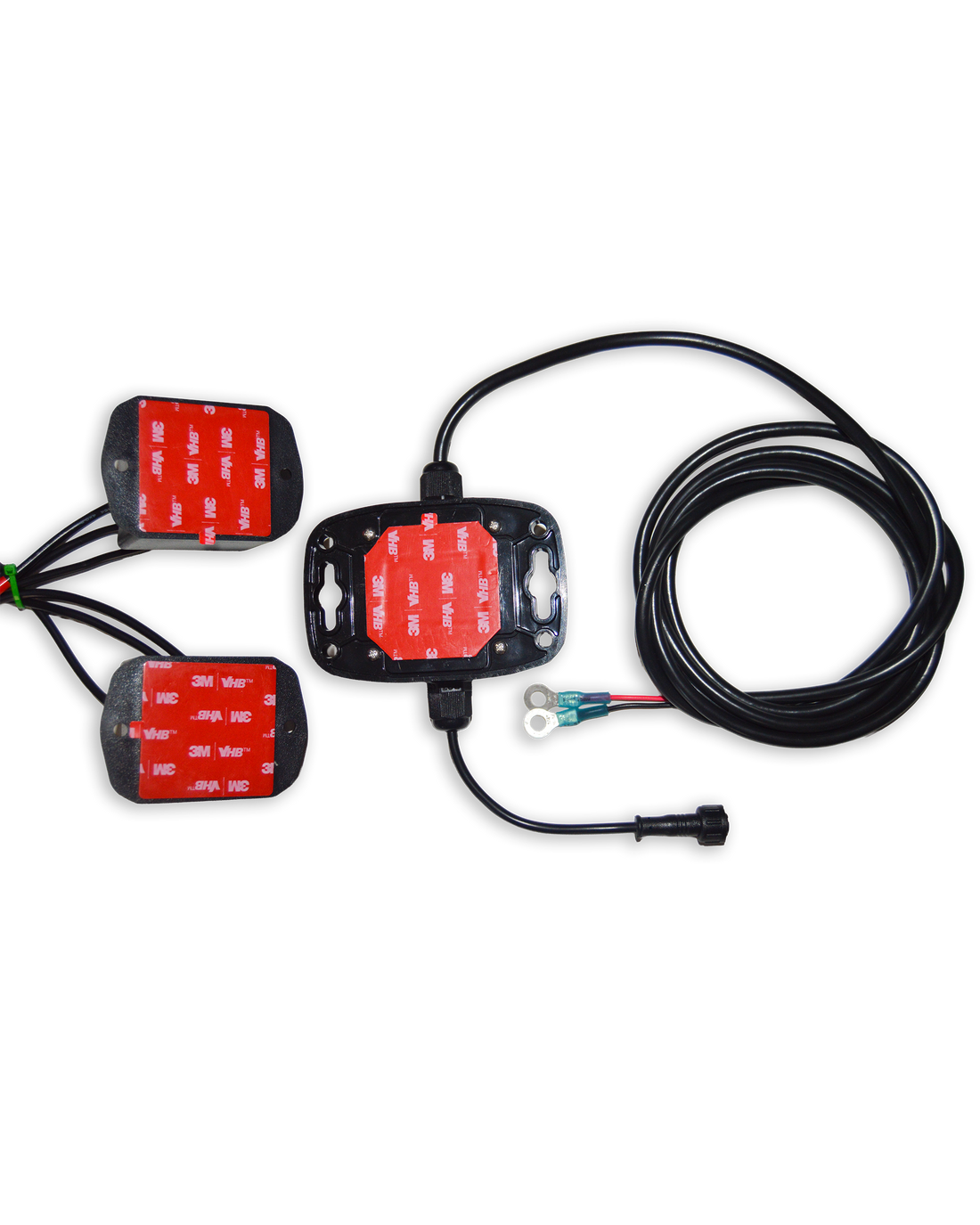

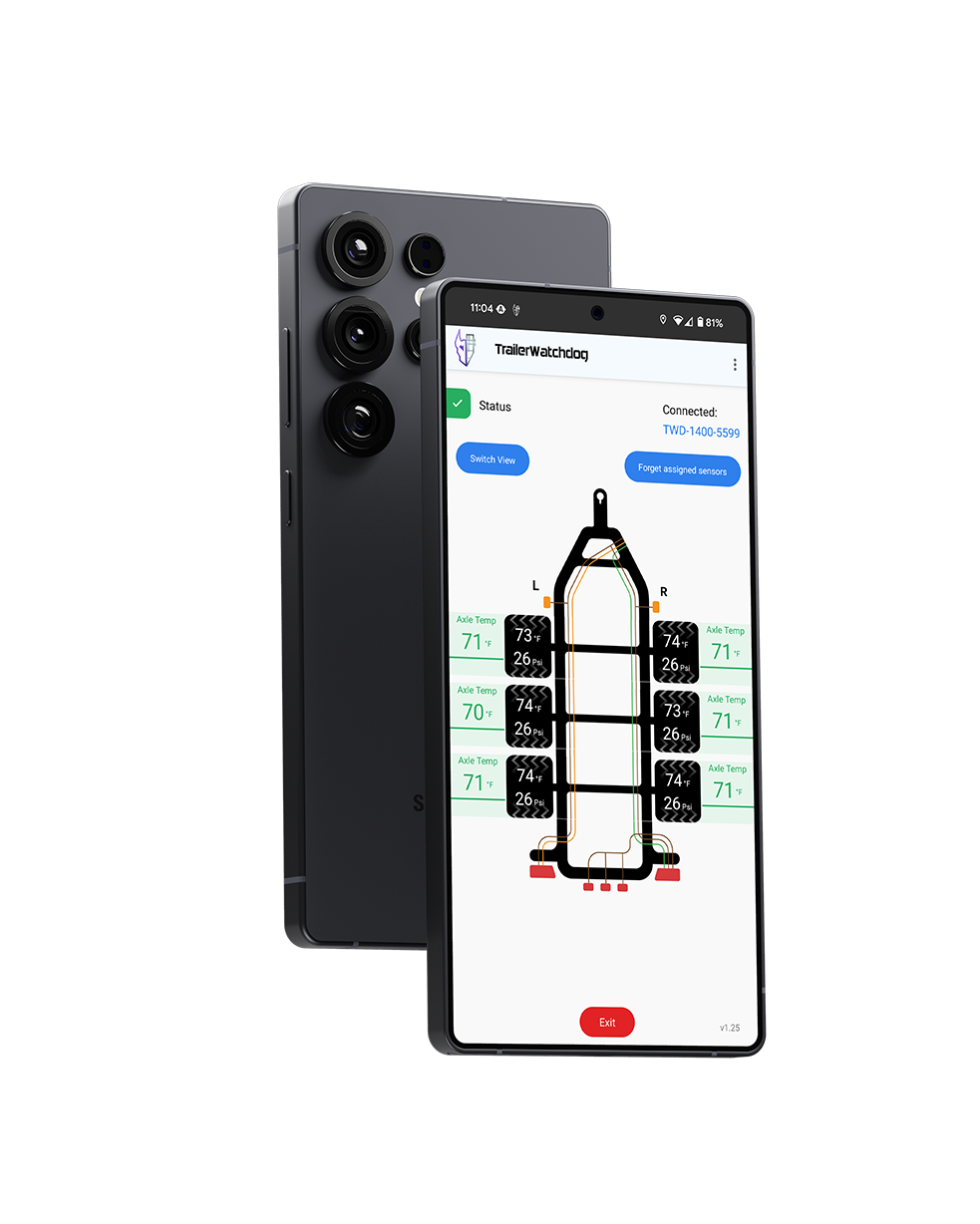

The TrailerWatchdog TWD-1500 monitors axle temperature continuously via magnetic sensors mounted at the hub. When temperature exceeds safe limits, your smartphone alerts you immediately. Combined with TPMS for tire pressure, it covers both the #1 and #2 causes of trailer breakdowns.
Don't Wait for Smoke to Know There's a Problem
The TWD Adventure monitors axle temperature and tire pressure in real time. Bluetooth 5.0. Magnetic no-drill sensors. IP67 waterproof. $395. Made in the USA.
Frequently Asked Questions
How often should I repack trailer wheel bearings?
Every 12 months or 12,000 miles, whichever comes first. Boat trailer bearings should be repacked more frequently — annually at minimum, every 6 months if you regularly submerge the hubs.
Can I repack bearings myself?
Yes. It requires basic tools and about 1–2 hours per side. The process isn't complicated, but proper adjustment of the castle nut preload is critical. If you're not confident, have a trailer service shop do it the first time so you can learn the feel.
What grease should I use for trailer wheel bearings?
High-temperature wheel bearing grease — marine-grade if your trailer ever contacts water. Avoid mixing different grease types, as they can be chemically incompatible. When repacking, remove ALL old grease before applying new.
How do I know if my bearings need replacing?
During inspection, look for pitting, scoring, discoloration (blue/brown from heat damage), or rough rotation. Any of these means replacement. When in doubt, replace — a bearing set costs $10–$30, while a failed bearing can cause thousands in damage.
What happens if a trailer wheel bearing fails while driving?
Progressive failure: excessive heat → grease seal failure → grease loss → metal-on-metal contact → hub seizure → potential wheel separation. At highway speeds, a wheel-off is a serious hazard to other vehicles. Catching high axle temperature early with monitoring gives you time to pull over safely.
