The Ultimate Trailer Tire Pressure & Temperature Monitoring Guide

---

Introduction: Why Tire Monitoring Matters

If you tow a trailer — whether it's a boat, camper, horse trailer, or utility trailer — your tires and bearings are the most critical components on the entire rig. They carry your load, absorb road shocks, and operate under conditions that car tires never face. Yet most trailer owners check tire pressure maybe once a month, and rarely if ever monitor bearing temperature.

The data tells a sobering story. According to the National Highway Traffic Safety Administration, there are approximately 69,000 trailer-towing crashes annually in the United States. The majority involve preventable mechanical failures — tire blowouts, bearing seizures, and brake failures that start as small, monitorable issues long before they become emergencies.

This guide covers everything you need to know about monitoring tire pressure and temperature on your trailer, why it matters, how to do it effectively, and how modern monitoring technology makes it simpler than ever.

---

Part 1: Understanding Trailer Tire Pressure

Why Tire Pressure Is Critical for Trailers

Trailer tires operate differently than passenger car tires. They don't steer — they just carry weight and roll. This means:

• Higher load per tire: Trailer tires often run at or near their maximum load rating
• Less frequent rotation: Many trailer owners never rotate their tires, leading to uneven wear
• Longer idle periods: Trailers sit for months at a time, during which tires slowly lose pressure
• Different inflation needs: Trailer tires often require higher PSI than car tires, but the exact amount depends on load, tire size, and manufacturer specifications

The Problem: Most Trailers Are Underinflated

Studies show that only about 19% of drivers properly inflate their tires before towing. Underinflated trailer tires create a cascade of problems:

• Increased sidewall flex: This generates heat, which degrades the tire structure over time
• Reduced fuel efficiency: Underinflated tires increase rolling resistance
• Uneven tread wear: Edge wear accelerates, reducing tire life
• Poor handling: The trailer becomes less stable, especially in crosswinds
• Bearing stress: Underinflation changes load geometry on axle bearings, accelerating wear

How Much Air Should Your Trailer Tires Have?

The correct PSI for your trailer tires depends on several factors:

• Tire size and load range (Load Range C, D, or E)
• Actual loaded weight of your trailer
• Manufacturer specifications on the tire sidewall
• Operating conditions (highway speeds, ambient temperature, terrain)

General guidelines:

• Most trailer tires require 35-80 PSI depending on size and load range
• Load Range E tires typically run 80 PSI (cold)
• Load Range D tires typically run 65 PSI (cold)
• Load Range C tires typically run 50 PSI (cold)

Important: Always check the sidewall of your specific tire for the maximum PSI rating, and consult your tire manufacturer's load/inflation chart for the correct pressure based on your actual loaded weight.

Pro tip: Always check tire pressure when tires are cold (before driving or after sitting for 3+ hours). Pressure increases 1-2 PSI per 10°F of temperature rise, so hot readings will be higher than cold readings.

How Often Should You Check Tire Pressure?

• Before every trip: This is the single most important check
• Monthly during storage: Tires lose approximately 1 PSI per month naturally
• After significant temperature changes: A 20°F temperature swing can change pressure by 2-4 PSI
• After hitting a curb or pothole: Impact damage can cause slow leaks

---

Part 2: Understanding Trailer Tire Temperature

Why Tire Temperature Matters

Tire temperature is one of the most underappreciated indicators of trailer health. Here's why it matters:

• Heat is the #1 enemy of tire integrity: Most tire failures start with excessive heat buildup
• Temperature changes reveal problems: A tire running hotter than its paired tire on the same axle often indicates an issue
• Ambient temperature affects readings: A tire at 140°F might be normal on a 95°F day but concerning on a 60°F day

What's a Normal Tire Temperature?

While temperatures vary based on conditions, here are general guidelines:

• Normal operating range: 90-140°F (depending on ambient temperature and load)
• Caution zone: 140-160°F — investigate the cause
• Concern zone: 160-180°F — reduce speed, check for issues
• Danger zone: 180°F+ — pull over safely and investigate

Important: The rate of temperature change is often more telling than the absolute number. A tire that's steadily climbing in temperature is a concern, even if it hasn't reached a "danger" threshold yet.

What Causes Excessive Tire Temperature?

Several factors can cause abnormal tire temperatures:

• Underinflation: The #1 cause of excessive tire heat
• Overloading: Exceeding the tire's load rating
• Dragging brakes: A brake that doesn't fully release creates friction and heat
• Prolonged downhill driving: Continuous braking generates heat
• High ambient temperatures: Hot weather reduces the margin before problems develop
• Poor ventilation: Trailers with enclosed wheel wells trap heat
• Misaligned axles: Causes uneven tire wear and heat buildup

The Connection Between Tire Temperature and Bearing Temperature

Tire temperature and bearing temperature are closely related. An overheating wheel bearing transfers heat to the hub, which in turn heats the tire from the inside — where a TPMS sensor mounted on the valve stem might not detect it until it's too late. This is why monitoring both tire and bearing temperature provides a more complete picture than monitoring either one alone.

---

Part 3: Manual vs. Automated Monitoring

The Limitations of Manual Monitoring

Most trailer owners rely on manual checks:

• Tire pressure gauge: Check before each trip
• Visual inspection: Look for flat spots or damage
• Touch test: Feel tires for excessive heat after a trip

Problems with manual monitoring:

• Only gives you a snapshot: You know the pressure at the moment you check, but not what happens 100 miles down the road
• No trend data: You can't see slow leaks developing over days or weeks
• No temperature monitoring during travel: You can't feel a tire's temperature while driving at 70 mph
• No bearing temperature data: You can't monitor bearing health without specialized equipment
• Human error: Forgetting to check, reading the gauge incorrectly, not accounting for temperature changes

The Advantages of Automated Monitoring

Modern trailer monitoring systems provide continuous data that manual checks simply cannot match:

• Real-time pressure monitoring: Every tire, every moment, while you're driving
• Temperature tracking: Both tire and bearing temperature in real time
• Trend analysis: See slow leaks develop over hours or days, not just sudden blowouts
• Alerts and notifications: Get notified immediately when something is wrong
• Historical data: Review trends to understand your trailer's behavior over time
• No driving distraction: The system monitors in the background so you can focus on the road

What to Look for in a Monitoring System

When evaluating trailer monitoring systems, consider these factors:

• Coverage: Does it monitor both tire pressure AND temperature? Does it include bearing temperature?
• Sensor quality: Are the sensors waterproof, temperature-rated, and built for trailer conditions?
• Connectivity: Bluetooth range, mesh networking, reliability
• Display: Is the readout clear and easy to understand while driving?
• Installation: Can you install it yourself, or do you need a professional?
• Power source: How is the monitor powered? Battery, wiring, or both?
• Compatibility: Does it work with your phone (iOS/Android) or does it require a dedicated display?
• Price: Consider the cost of a failure vs. the cost of prevention

---

Part 4: TrailerWatchdog Monitoring Systems

How TrailerWatchdog Works

TrailerWatchdog monitoring systems combine tire pressure monitoring (TPMS) with axle temperature sensing into a single integrated platform. The system works by:

• TPMS sensors thread onto your tire valve stems and transmit pressure and temperature data
• Axle temperature sensors mount near your hubs and bearings (magnetic, no-drill installation on the TWD-1500)
• The TWD monitor unit receives data from all sensors via Bluetooth mesh networking

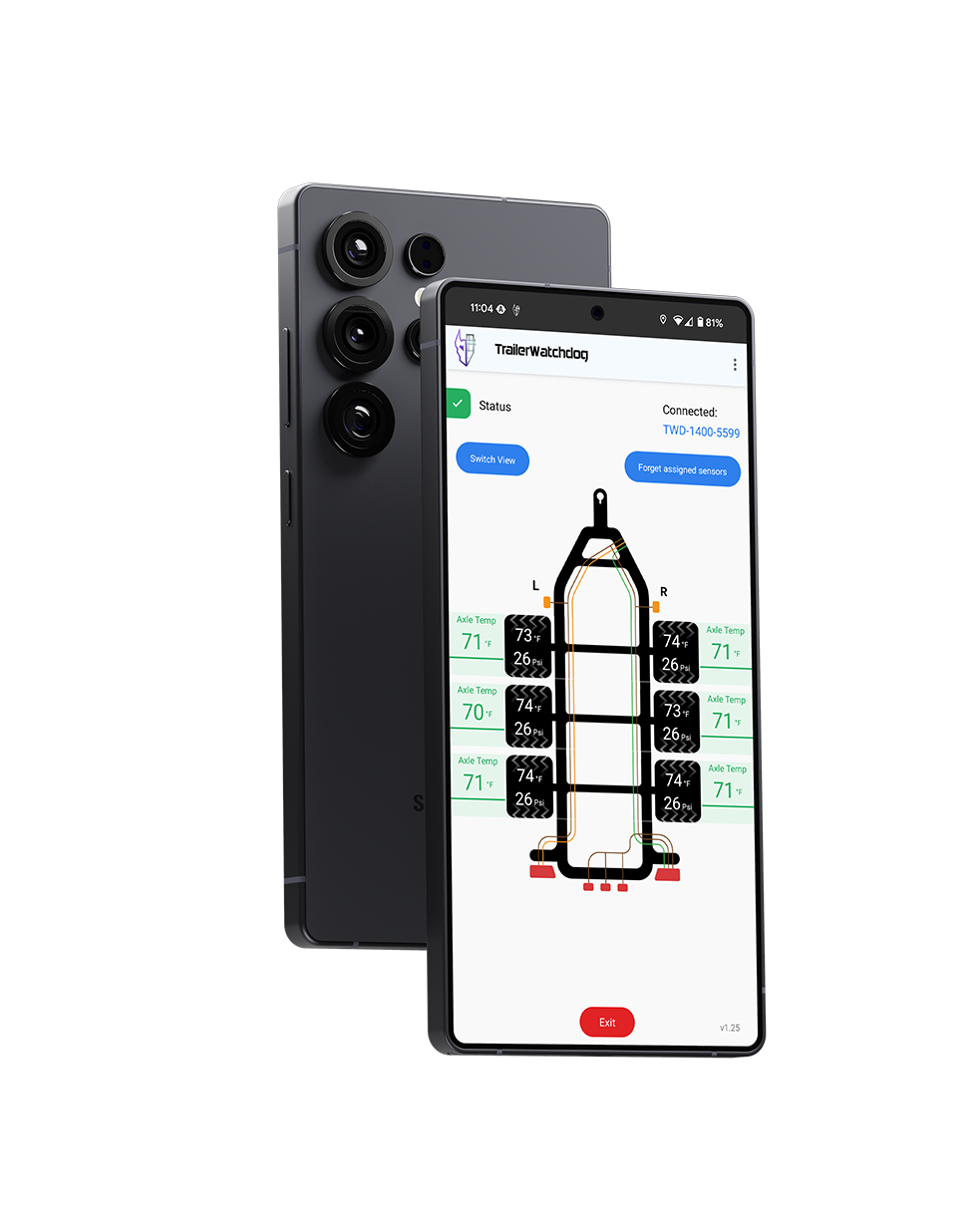

• The smartphone app displays real-time readings and intelligent trend analysis
• Alerts notify you immediately when pressure or temperature exceeds your configured thresholds

Key Features of the TWD-1500

The TWD-1500 is the latest generation of TrailerWatchdog monitoring systems. Key features include:

• Bluetooth 5 mesh networking: Ensures every sensor broadcast is received, even on long trailers, without repeaters
• Magnetic axle temperature sensors: Mount in seconds with 30 lbs of magnetic force — no drilling required
• IP67 waterproof rating: Built for the harshest trailer conditions
• Smart trend analysis: Tracks the rate of change, not just absolute values
• Preserved tire-pairing data: Keeps your configuration even when switching devices
• Free iOS and Android app: No subscription or monthly fees
• Easy installation: Most owners install in under 30 minutes with basic hand tools

System Options

TrailerWatchdog offers two systems, purpose-built for different use cases:
