Trailer Axle Temperature Monitoring: Why It Matters and How It Works

Trailer Axle Temperature Monitoring: Why It Matters and How It Works

Updated March 2026 · By TrailerWatchdog

TrailerWatchdog magnetic axle temperature sensor mounted on trailer hub assembly

Most trailer owners know about tire pressure monitoring. Far fewer know about the threat that's even harder to detect and just as catastrophic: axle and wheel-end failures.

A bearing seizure, a dragging brake, a failing grease seal — these problems don't show up on a tire pressure gauge. They don't make noise you can hear at highway speed with a trailer 20 feet behind you. The first sign is often smoke, flames, or a wheel that's no longer attached to your trailer.

The average roadside wheel-end failure costs $1,800–$4,000 in towing, repairs, and lost time. Some end in total trailer loss. Some cause multi-vehicle accidents. And virtually all of them are preventable — if you're monitoring axle temperature.

This guide explains what axle temperature monitoring is, what it detects, how the technology works, and why it's the critical missing piece in trailer safety that TPMS alone can't provide.

What Is Axle Temperature Monitoring?

Axle temperature monitoring uses sensors mounted on or near trailer hub assemblies to continuously measure the temperature of wheel-end components — bearings, hubs, brake drums, and rotors. The sensors transmit data wirelessly to a display or smartphone, alerting you when temperatures exceed safe thresholds.

Think of it as a fever thermometer for your trailer's wheel ends. Just like a fever indicates infection in your body, rising hub temperature indicates something is wrong inside the axle assembly — friction where there shouldn't be, heat building where it shouldn't be, components failing that you can't see.

The concept isn't new. Commercial trucking has used hub temperature monitoring for decades — infrared thermal guns at truck stops, in-cab monitors on premium rigs. What's new is making this technology accessible, affordable, and practical for every trailer owner. That's what the TrailerWatchdog TWD-1500 was designed to do.

What Axle Monitoring Detects

Axle temperature sensors detect problems that are invisible to every other monitoring system on your trailer. Here are the four major failure modes:

1. Bearing Failure

Wheel bearings allow your trailer wheels to spin freely on the axle. When bearings fail — from lack of grease, contamination, overloading, or simple wear — friction increases dramatically. That friction generates heat. A lot of heat.

A failing bearing progresses through stages:

  1. Early wear — Slightly elevated temperature, barely noticeable without monitoring
  2. Excessive play — Temperature climbing, bearing surfaces degrading (see: How to Check Trailer Bearing Play)
  3. Metal-on-metal contact — Grease depleted, bearing surfaces scoring, temperature spiking
  4. Seizure — Bearing locks, hub overheats to the point of glowing, potential wheel separation

Axle temperature monitoring catches this progression at stage 1 or 2 — long before you'd notice any other symptoms. Without monitoring, most people don't know until stage 3 or 4, when the repair bill is already in the thousands. Learn the warning signs in our guide: Bad Trailer Wheel Bearing Symptoms.

2. Hub Fires

This is the nightmare scenario. Overheated bearings, seals, or brakes can ignite grease, brake fluid, or the tire itself. Hub fires on trailers carrying boats, RVs, horses, or cargo can cause total loss and endanger everyone on the road.

Hub fires almost always start with elevated temperature that builds over minutes or hours. Axle monitoring gives you the one thing that can prevent them: early warning.

3. Dragging Brakes

Electric trailer brakes can stick or fail to fully release. A dragging brake generates constant friction heat on one wheel — sometimes on just one side of the trailer. The temperature differential between left and right hubs is a dead giveaway, but you'd never know without monitoring.

Dragging brakes waste fuel, destroy brake components, overheat hubs, and can cascade into bearing failure. Axle temperature sensors detect the asymmetric heat pattern immediately.

4. Seal Failures

Grease seals keep lubricant in and contaminants out of your wheel bearings. When seals fail, grease leaks out and water/dirt gets in. The result is accelerated bearing wear and eventual failure.

A leaking seal causes gradual temperature elevation as bearing lubrication degrades. Axle monitoring catches the slow climb that you'd otherwise miss until the bearing fails catastrophically.

⚠️ The Hidden Danger

All four of these failure modes share one thing in common: they produce zero symptoms detectable from the driver's seat until they're already dangerous. You can't hear a bearing running hot at 65 mph with the radio on and a trailer behind you. You can't feel a dragging brake through the tow hitch. By the time you smell burning grease, you're in emergency territory.

Normal vs. Dangerous Temperatures

Understanding baseline temperatures is critical to interpreting what your monitoring system tells you. Here's what to expect:

Temperature Range What It Means Action
Ambient to 130°F (54°C) Normal operating range for most trailer hubs at highway speed No action needed — this is healthy operation
130°F – 170°F (54°C – 77°C) Elevated — could be normal in hot weather/heavy loads, or early warning Monitor closely. Compare left vs. right. If one side is significantly hotter, investigate at next stop.
170°F – 220°F (77°C – 104°C) Warning zone — something is likely wrong (bearing, brake, or seal issue) Pull over safely at the next opportunity. Inspect visually and by touch (carefully). Do not continue without diagnosis.
Above 220°F (104°C) Critical — bearing damage likely, hub fire risk imminent Stop immediately. Do not drive further. Inspect from a safe distance. Call for roadside assistance if smoke or discoloration is visible.

Important context: Ambient temperature, driving speed, load weight, road grade, and recent braking all affect hub temperature. A hub reading 140°F on a 95°F day after a mountain descent is very different from 140°F on a 60°F day on flat highway. This is why trend analysis — watching the temperature trajectory over time rather than just the number — is so valuable.

For a deeper dive into bearing temperature specifics, see our Trailer Bearing Temperature Chart and Bearing Temperature Guide.

How Axle Temperature Sensors Work

Axle temperature sensors use thermistors or thermocouples — components whose electrical resistance changes predictably with temperature. The sensor makes contact with or sits near the hub assembly, measures the surface temperature, and transmits the reading wirelessly.

Sensor Placement

Proper placement is critical. The sensor needs to be in thermal contact with the hub or bearing cap area — close enough to detect heat from the bearings and brakes, but positioned where it won't interfere with wheel rotation or brake components.

Protect your trailer

The TWD-1500's axle sensors use high-strength rare-earth magnets (30 lbs holding force) that attach directly to the hub or axle housing. This magnetic mount approach has several advantages:

  • No drilling — Zero permanent modification to your trailer
  • Direct thermal contact — Metal-to-metal contact ensures accurate temperature transfer
  • Vibration resistant — 30 lbs of magnetic force keeps the sensor firmly in place even on rough roads
  • Repositionable — Easy to adjust placement or move between trailers
  • Self-aligning — The magnet naturally seats flat against the mounting surface

Data Transmission

Modern axle temperature sensors use Bluetooth (BT5 in the TWD-1500's case) to transmit readings to a smartphone app. The app processes the raw data, applies trend analysis, compares left-to-right differentials, and triggers alerts when thresholds are exceeded.

The advantage of Bluetooth over older RF systems is direct smartphone integration — no separate monitor to mount in your cab, better display, easier threshold configuration, and the ability to log data for later review.

Why TPMS Alone Can't Protect You

If you already have a tire pressure monitoring system on your trailer, you're ahead of most people. But TPMS has a fundamental limitation: it monitors the wrong component for half the failures that can happen on the road.

Consider this scenario: You're towing your boat trailer on I-95 at 65 mph. Your TPMS shows all four tires at perfect pressure and normal temperature. Everything looks green. Meanwhile, the inner bearing on your right rear hub is running dry — the grease seal failed three trips ago and you didn't notice the small grease spot on your driveway. The bearing temperature is climbing: 150°F… 180°F… 220°F.

Your TPMS? Still showing green. Because tire pressure hasn't changed yet. By the time heat from the bearing transfers through the hub and rim to the tire and affects tire pressure, the bearing has already seized. You've got smoke, possibly flames, and a roadside emergency.

This isn't hypothetical. It happens thousands of times per year on American highways. And it's why we built the TWD-1500 to monitor both. For the full breakdown, read: Why TPMS Alone Isn't Enough.

How the TrailerWatchdog System Works

TrailerWatchdog TWD-1500 complete system with TPMS sensors and magnetic axle temperature monitors

The TrailerWatchdog TWD-1500 is purpose-built for combined trailer monitoring. Here's how the system works:

The Hardware

  • TPMS cap sensors — Thread onto each tire's valve stem. Monitor pressure and tire temperature in real time.
  • Magnetic axle temperature sensors — Attach to each hub assembly via rare-earth magnets (30 lbs force). IP67 weatherproof. No drilling, no wiring.
  • Bluetooth 5.0 mesh — All sensors communicate via BT5 to your smartphone. The mesh architecture ensures reliable data delivery even with multiple sensors.

The Software

  • Real-time dashboard — See every tire's pressure and temperature alongside every hub's temperature on one screen
  • Configurable alerts — Set thresholds per position for pressure (high/low), tire temperature, and axle temperature
  • Trend analysis — The app doesn't just show current readings — it tracks trends over time, identifying gradual changes that single-point monitoring misses
  • Left/right differential alerts — If one side of the trailer is running hotter than the other, the system flags the asymmetry — a key indicator of brake or bearing issues on one side
  • Multi-trailer profiles — Switch between trailers without re-pairing

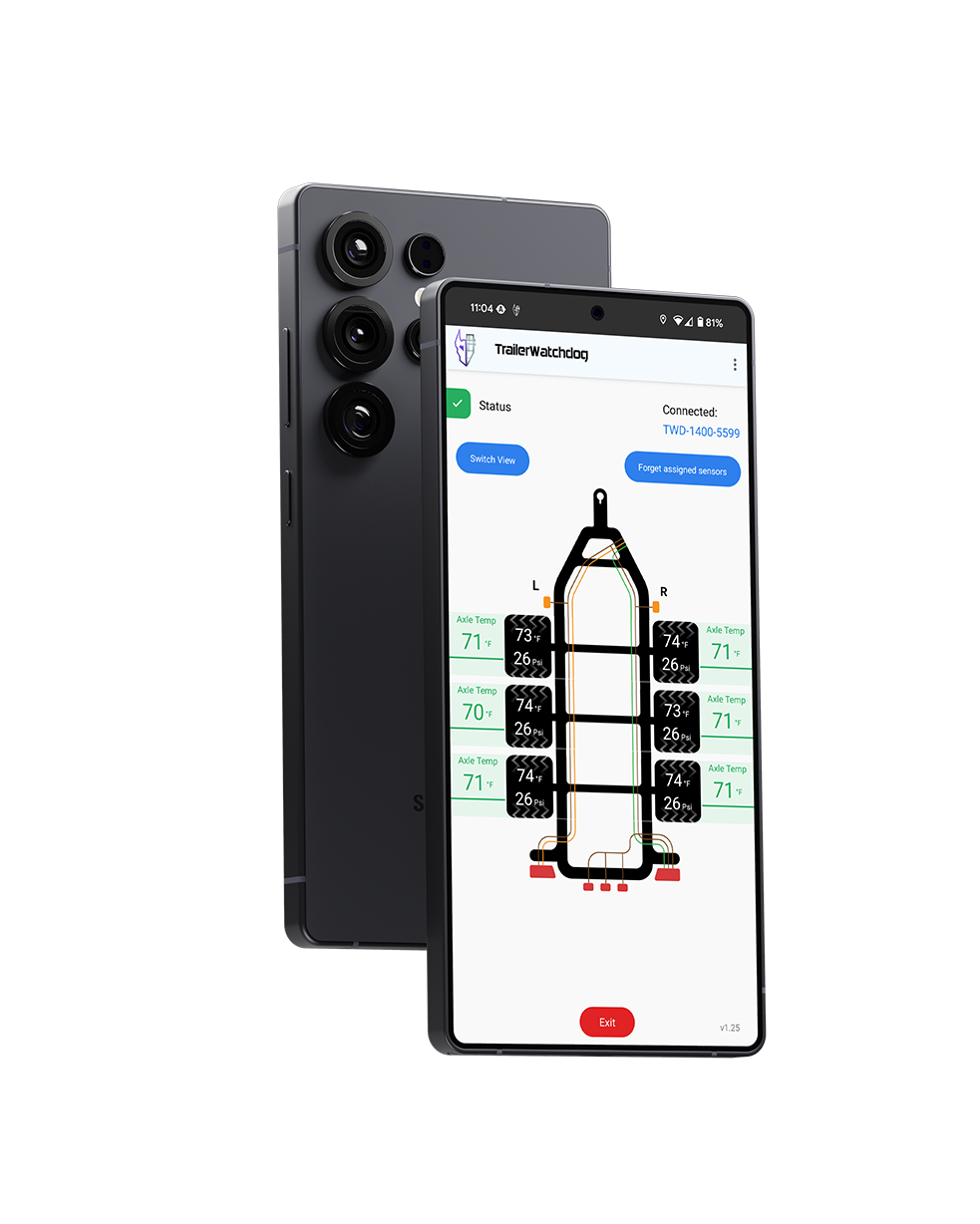

TrailerWatchdog app displaying tire pressure and axle temperature data on smartphone

Made in America

The TWD-1500 is designed and manufactured in Ijamsville, Maryland. That means domestic customer support, accessible replacement parts, and quality control you can trust. This isn't a white-labeled import — it's purpose-engineered for the American trailer market.

Installation and Placement

Installing the TWD-1500's axle monitoring sensors takes about 15 minutes total, requires no tools, and makes no permanent modifications to your trailer.

Step-by-Step

  1. Clean the mounting surface — Wipe the hub cap, bearing protector, or axle housing where you'll place the sensor. Remove grease, dirt, and rust for good magnetic contact.
  2. Attach the sensor — Place the magnetic sensor on the flat surface nearest the bearing. The magnet self-seats for maximum contact area.
  3. Pair via the app — Open the TrailerWatchdog app, select "Add Axle Sensor," and follow the prompts to assign it to the correct wheel position.
  4. Set temperature thresholds — Configure your warning and critical temperature alerts. We recommend starting with 160°F (warning) and 200°F (critical) and adjusting based on your baseline observations.
  5. Verify readings — Confirm the sensor is reporting and the reading matches ambient temperature (before driving).
Easy magnetic installation of TrailerWatchdog axle temperature sensor — no drill, no tools

Placement Tips

  • Mount on the hub cap or bearing protector when possible — this gives the most direct thermal reading of bearing condition
  • Avoid mounting on the brake drum directly — you want bearing temperature, not brake temperature (though both are informative)
  • Ensure clearance — Verify the sensor doesn't contact any rotating components. Spin the wheel by hand after mounting to confirm.
  • Consistent placement — Mount left and right sensors in the same position for accurate differential comparison

For the complete installation walkthrough with photos, see our TWD-1500 Installation Guide.

Real-World Scenarios

Here's what axle temperature monitoring looks like in practice — the situations where it saves you from disaster:

Scenario 1: The Long Haul Bearing Failure

You're 200 miles into a 400-mile trip pulling a travel trailer. Your axle monitor shows both hubs running at 115°F — normal. Around mile 250, the right side starts climbing: 125°F… 135°F… 150°F. The left side stays at 120°F. Your phone chimes with a warning alert. You pull off at the next exit, check the right hub (warm to the touch, not yet dangerously hot), and call a mobile mechanic. Diagnosis: inner bearing showing early wear, grease seal starting to weep. Cost: $180 roadside repair. Without monitoring? That bearing seizes somewhere around mile 350. Cost: $2,500 tow + repair + hotel.

Scenario 2: The Stuck Brake

You notice your tow vehicle seems to be working harder than usual after a mountain pass. TPMS shows normal tire pressures. But your axle monitor shows the left hub at 185°F and the right at 110°F. That 75-degree differential screams brake issue. You stop, and sure enough, the left brake is dragging — the magnet isn't fully releasing. A quick adjustment at a brake shop saves you from warped drums, cooked bearings, and a potential hub fire.

Scenario 3: Post-Launch Overheating

You've just pulled your boat out of the water. Your bearing protectors are supposed to keep water out, but the left one has a compromised seal. Water contaminated the grease during submersion. On the drive home, the left hub temperature starts climbing faster than the right. The axle monitor flags it before you're 10 miles from the ramp. You get the bearings repacked at the next shop instead of dealing with a seized bearing on the highway.

Maintaining Your Monitoring System

Before Every Trip

  • Verify both TPMS and axle sensors are reporting in the app
  • Confirm axle sensors are still firmly mounted (give each a tug)
  • Check that readings match ambient temperature (cold start baseline)

Monthly (Active Season)

  • Clean sensor surfaces — remove road grime that could insulate the sensor from the hub
  • Check for physical damage or corrosion
  • Verify alert thresholds haven't been accidentally changed

Annually

  • Replace sensor batteries per manufacturer schedule
  • Inspect magnetic mounting surfaces for corrosion buildup
  • Update app firmware
  • Review and adjust temperature thresholds based on the previous season's data

Don't Forget the Bearings Themselves

Monitoring doesn't replace maintenance. Trailer wheel bearings should be inspected and repacked per your axle manufacturer's schedule — typically every 12 months or 12,000 miles, whichever comes first. For trailers that are submerged (boat trailers), inspect after every season. Learn more: Trailer Bearing Brands Comparison.

The Only Combined TPMS + Axle Monitoring System

The TrailerWatchdog TWD-1500 monitors tire pressure AND axle temperature — because the most dangerous failures don't start at the tire. Made in USA. Magnetic install. No wires.

See the TWD-1500 →

Starting at $395 · Free shipping · Ijamsville, MD

Frequently Asked Questions

Can't I just touch the hubs at rest stops to check temperature?

You can, and experienced trailer owners do. But this approach has serious limitations: you can only check when stopped, you might not stop often enough, you can't detect gradual trends, and by the time a hub is noticeably hot to the touch it may already be in the danger zone. Continuous monitoring catches problems between stops — which is when they develop.

Do axle sensors work with all trailer types?

Yes. Magnetic axle sensors work with any steel or iron hub, bearing protector, or axle housing. This covers the vast majority of trailer axles. The TWD system includes sensors for boat trailers (Mariner), horse trailers (EquiGuard), RVs (Adventure), equipment trailers (LoadMaster), and more.

How do I know what temperature thresholds to set?

Start with conservative defaults: 160°F for warning, 200°F for critical. After a few trips, review your baseline data. If your hubs consistently run at 110°F on highway trips, you'll know that 145°F is worth investigating. The key metric is differential — one side significantly hotter than the other — as much as the absolute number.

Will the magnets damage my hubs or affect my bearings?

No. The sensors use rare-earth magnets that create a strong but surface-level magnetic field. They don't penetrate into the bearing assembly or create any electromagnetic interference. The magnetic force is designed to hold the sensor securely without requiring any mechanical attachment.

How is this different from the infrared guns at truck stops?

Infrared thermal guns give you a single point-in-time reading when you're already stopped. They're useful but reactive — you're checking after the fact. Continuous axle monitoring gives you real-time data while driving, including trend analysis and alerts. It's the difference between taking your temperature once at the doctor and wearing a continuous health monitor.

Do I still need TPMS if I have axle monitoring?

Yes — they protect against different failure modes. TPMS catches tire-specific problems (pressure loss, slow leaks, overinflation). Axle monitoring catches wheel-end problems (bearings, brakes, seals). Neither is a substitute for the other. That's exactly why the TWD-1500 combines both. See our Complete Guide to Trailer TPMS for the full picture.
