Trailer TPMS: The Complete Guide to Tire Pressure Monitoring Systems

Updated March 2026 · By TrailerWatchdog

If you tow a trailer — whether it's a travel trailer, boat trailer, horse trailer, or flatbed — tire pressure monitoring isn't optional. It's the single most effective thing you can do to prevent blowouts, reduce tire wear, and protect your rig on the road.

Here's the problem: only 44% of trailer tires are properly inflated at any given time. Under-inflated tires generate excessive heat, accelerate sidewall fatigue, and eventually fail — often catastrophically. 85% of tire blowouts are preventable with proper pressure monitoring. And with 48% of roadside service calls being tire-related, the math is simple: a trailer TPMS pays for itself the first time it saves you from a breakdown.

This guide covers everything: how TPMS technology works, the different sensor types, what to look for when buying, installation, maintenance, and why the smartest trailer owners are moving beyond TPMS-only systems to combined monitoring.

What Is a Trailer TPMS?

A Tire Pressure Monitoring System (TPMS) is a set of sensors that continuously measures the air pressure (and usually temperature) inside each tire and transmits that data to a display or smartphone app. When pressure drops below or rises above your set thresholds, the system alerts you — ideally before the situation becomes dangerous.

Your tow vehicle likely has a built-in TPMS. But here's the critical gap: your vehicle's TPMS does not monitor your trailer tires. Those tires are on their own unless you add a dedicated trailer TPMS.

Trailer tires face unique stresses that make monitoring even more important than for your tow vehicle:

• Extended storage periods — tires lose pressure sitting in driveways and storage lots
• Irregular use — many trailers sit for months, then face long highway trips
• No driver feel — you can't sense a soft tire 20 feet behind you through road feedback
• Higher load-per-tire ratios — trailer tires often run near their maximum rated load
• ST-rated tires — Special Trailer tires have different characteristics than passenger or light truck tires (see our D vs. R rating guide)

A trailer TPMS closes this gap by giving you real-time visibility into every tire on your trailer — while you drive.

How TPMS Works: Direct vs. Indirect

There are two fundamental approaches to tire pressure monitoring. For trailers, only one of them is practical.

Direct TPMS

Direct TPMS uses physical sensors on each wheel that measure actual tire pressure and temperature. The sensors transmit data wirelessly — via RF or Bluetooth — to a receiver or smartphone. This is what virtually every aftermarket trailer TPMS uses, and it's the approach the TrailerWatchdog TWD-1500 takes.

Advantages:

• Measures actual pressure in real PSI — no guessing
• Reports tire temperature alongside pressure
• Alerts on both low and high pressure
• Works regardless of speed or driving conditions
• Can detect slow leaks before they become dangerous

Indirect TPMS

Indirect TPMS doesn't use pressure sensors at all. Instead, it uses the vehicle's ABS wheel speed sensors to detect differences in tire rotation speed — an underinflated tire has a slightly smaller effective diameter and rotates faster. This is the system built into most modern cars and trucks.

Why indirect TPMS doesn't work for trailers:

• Requires ABS integration — most trailers don't have compatible ABS systems
• Cannot provide actual pressure readings, only relative changes
• Requires recalibration after tire service or rotation
• Less accurate at detecting gradual pressure loss
• No temperature monitoring capability

Bottom line: When shopping for a trailer TPMS, you're looking at direct systems. The key differences are in sensor type, connectivity, and features — which we'll cover next.

Sensor Types: Cap, Flow-Through, and Internal

Direct TPMS sensors come in three physical configurations. Each has trade-offs in convenience, accuracy, and durability.

For most trailer owners, cap-style sensors are the practical choice. They install in seconds, don't require a tire shop visit, and modern versions (like those in the TWD-1500 system) use locking mechanisms to deter theft. The convenience of being able to swap sensors between trailers, check batteries, and install yourself outweighs the marginal accuracy advantage of internal sensors.

Flow-through sensors are a solid middle ground if you frequently top off tires at fuel stops, since you can add air without removing the sensor.

What to Look for When Buying a Trailer TPMS

Not all trailer TPMS systems are created equal. Here are the features that actually matter — and the ones that are just marketing fluff.

Essential Features

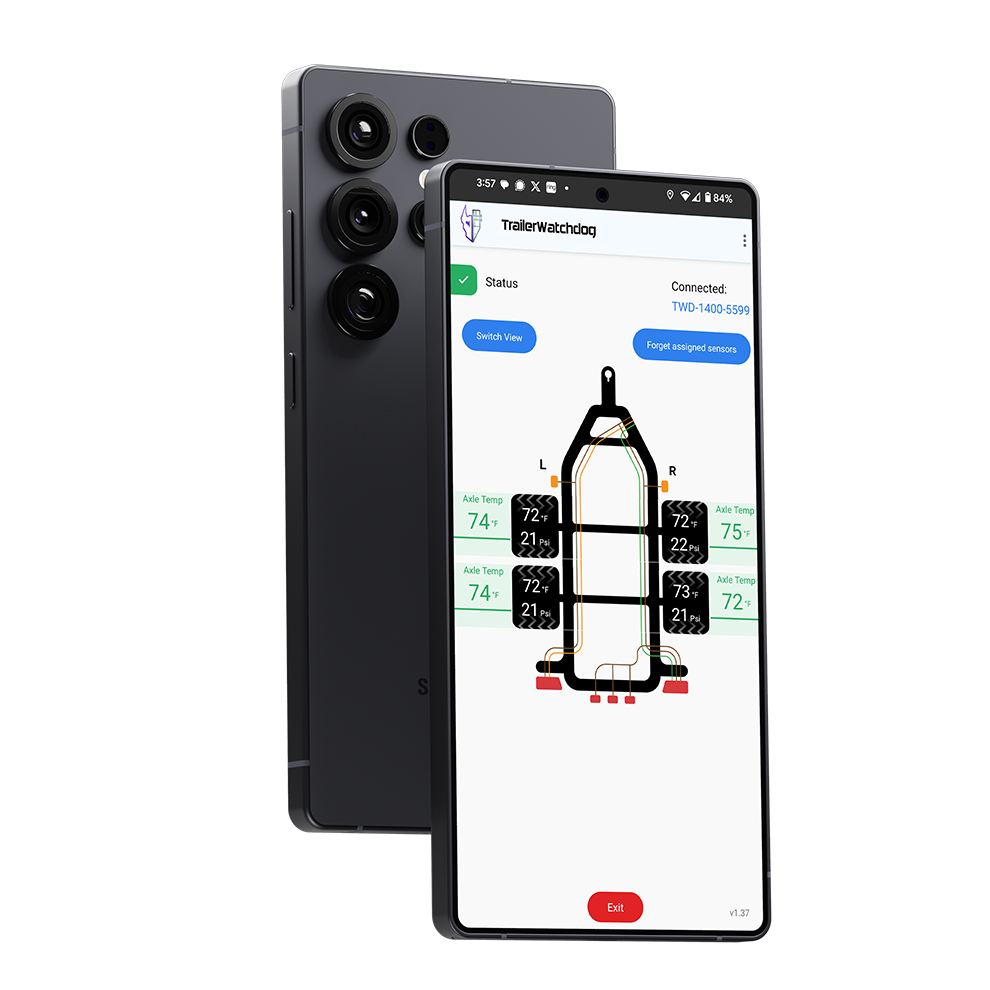

• Bluetooth 5.0 or newer — Older RF-based systems require a dedicated monitor mounted in your cab. BT5 systems like the TWD-1500 send data directly to your smartphone, eliminating extra hardware and giving you a better display. BT5 also offers better range and lower power consumption.
• Adjustable pressure thresholds — Different tires need different pressures. Your system should let you set high and low thresholds per tire position, not just a blanket percentage.
• Temperature monitoring — Pressure alone doesn't tell the whole story. Rising tire temperature can indicate problems even before pressure changes. Look for systems that monitor and alert on both.
• Adequate sensor count — Make sure the system supports the number of tires you need. Dual-axle trailers need 4 sensors; triple-axle need 6. If you tow multiple trailers, check if the system supports sensor profiles.
• Weatherproofing — Trailer sensors live in harsh environments. Look for IP67 or better rated sensors. Anything less will fail prematurely from water, mud, or road spray.
• Real-time alerts — The system should alert you immediately on pressure drops, not just log data for later review. Audible and visual alerts are minimum requirements.

Nice-to-Have Features

• Trend analysis — Systems that track pressure and temperature over time (not just snapshots) can reveal slow leaks and developing issues before they trigger threshold alerts
• No-drill installation — Magnetic mounting means no permanent modifications to your trailer
• Multiple trailer profiles — Switch between trailers without re-pairing sensors
• Made in USA — Not just a feel-good point. Domestic manufacturing typically means better QC, accessible customer support, and available replacement parts

Red Flags

• Systems requiring a dedicated monitor with no smartphone option (outdated technology)
• No adjustable thresholds — one-size-fits-all doesn't work for trailer tires
• Sensors rated below IP65
• No temperature monitoring
• Proprietary batteries that are hard to source

For detailed head-to-head comparisons, see our matchups: TWD vs. EEZTire, TWD vs. TireMinder, TWD vs. TST, and TWD vs. Haloview. For an overview of the market, see our Best Trailer TPMS Systems for 2026 roundup.

Installation and Setup

One of the biggest advantages of modern trailer TPMS systems is ease of installation. With a cap-sensor, Bluetooth-based system like the TWD-1500, setup takes about an hour with no tools required.

Basic Installation Steps

1. Download the app — Install the companion smartphone app and create your account
2. Pair the sensors — The app walks you through pairing each sensor via Bluetooth. Assign each sensor to its wheel position (left front, right rear, etc.)
3. Install sensors on valve stems — Thread each sensor onto the corresponding tire valve stem. Hand-tight plus a quarter turn with the included wrench is sufficient. Do not over-tighten.
4. Set pressure thresholds — Configure your target pressure, low-pressure alert, and high-pressure alert for each position. Check your tire sidewall or load chart for the correct cold inflation pressure (see our Trailer Tire PSI Guide).
5. Verify readings — Confirm all sensors are reporting and readings match a manual gauge check

For the complete walkthrough with photos and troubleshooting, see our TWD-1500 Installation Guide.

Installation Tips

• Always check valve stems first. Cracked or corroded rubber valve stems should be replaced before installing sensors. Metal valve stems are ideal for TPMS use.
• Install when tires are cold. This gives you accurate baseline readings. "Cold" means the trailer hasn't been driven for at least 3 hours.
• Use anti-seize on valve threads if provided — prevents corrosion bonding in saltwater/coastal environments.
• Apply lock nuts if your system includes them — prevents vibration-loosening and deters theft.

Maintenance and Best Practices

A TPMS is not set-and-forget. A little regular maintenance keeps your system reliable when it counts.
