TrailerWatchdog vs Haloview: Integrated vs Bolt-On Axle Monitoring

If you're shopping for trailer monitoring that goes beyond basic tire pressure, you've likely narrowed it down to two names: TrailerWatchdog and Haloview. They're the only products on the market offering axle temperature sensing alongside TPMS — and that puts them in a class of their own.

But "both do axle temp" is where the similarity ends. These two systems represent fundamentally different engineering philosophies. One was purpose-built from the ground up as an integrated monitoring platform. The other bolts axle sensors onto a backup camera system as a third-priority add-on.

This comparison breaks down the technical differences that actually matter — sensor methodology, response time, accuracy, price, and which system makes more sense depending on what you're towing.

Side-by-Side Comparison at a Glance

The Core Difference: Purpose-Built vs. Add-On

This is the single most important distinction between these two systems, and it shapes every other difference on this page.

TrailerWatchdog was engineered from day one as a trailer monitoring system. TPMS and axle temperature sensing aren't features bolted onto something else — they're the entire reason the product exists. The sensor architecture, the Bluetooth 5.0 mesh network, the trend intelligence algorithms, the smartphone interface — every component was designed to work together as a unified monitoring platform.

Haloview built a solid wireless backup camera system, then added TPMS capability, then added axle temperature sensors (ATS) as yet another accessory. The BT7 is fundamentally a camera product. Tire monitoring is a secondary function. Axle temperature is tertiary — a bolt-on to a bolt-on.

Why does this matter? Because when monitoring is an afterthought, the engineering compromises show up exactly where you don't want them: in the sensors that are supposed to warn you before a bearing seizes at highway speed.

Axle Temperature Sensing: Wired vs. Wireless

This is where the technical comparison gets interesting — and where the engineering philosophy difference has real-world consequences.

TrailerWatchdog: Wired Sensors with Direct Contact

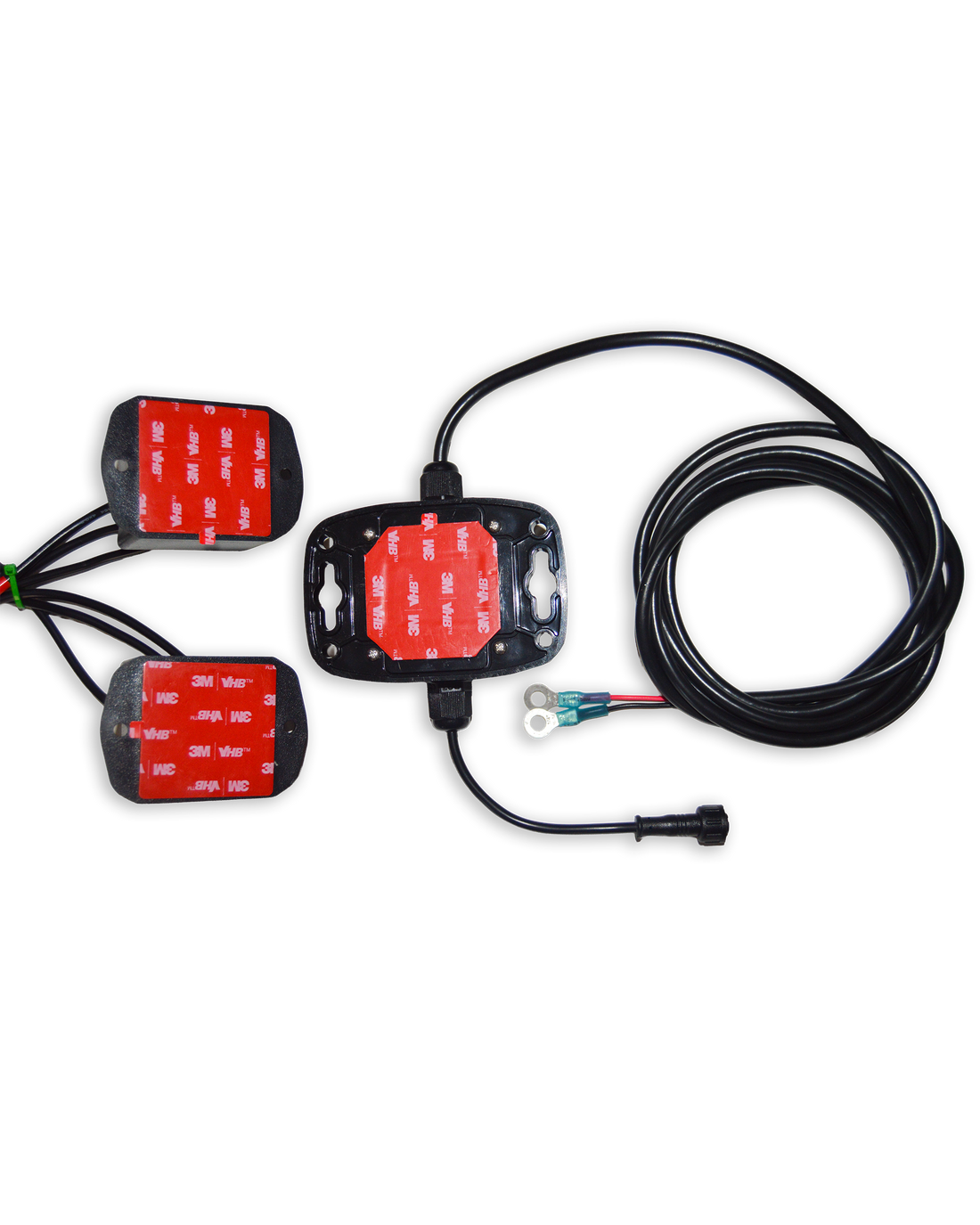

The TWD-1500's axle temperature sensors are wired directly into the monitoring hub. This means:

• Faster thermal response. Wired connections transmit temperature data continuously, with no polling intervals or wireless transmission delays. When a bearing starts generating excess heat, you see it developing in real time.
• No battery dependency. Wired sensors draw power from the hub — there are no coin cells to monitor, replace, or worry about dying mid-trip through Nevada.
• Consistent accuracy. No wireless signal degradation from metal interference, distance, or environmental factors. The data path from sensor to display is deterministic.
• Magnetic mounting with 30 lbs of force. No clamps, no drilling, no tools. Position the sensor, and the rare-earth magnet holds it firmly against the axle housing. This also means excellent thermal conductivity between the sensor and the axle surface.

Haloview: Wireless Battery-Powered ATS

Haloview's Axle Temperature Sensors (ATS) take a different approach:

• Wireless transmission. Each ATS sensor is a self-contained wireless unit that periodically transmits temperature readings to the BT7 monitor. This introduces potential thermal lag — the delay between a temperature change at the axle and that data reaching your display.
• Battery-powered (CR1632). Each sensor runs on a coin cell battery. Convenient for installation (no wiring), but batteries have finite life. You're adding battery monitoring to your pre-trip checklist, and a dead sensor battery means zero monitoring on that wheel position.
• Clamp-on mounting. Rather than magnetic attachment, the ATS uses a clamp mechanism. This works, but introduces a variable: clamp tightness affects thermal contact with the axle surface. Too loose and you're measuring air temperature near the axle, not axle temperature.
• Accuracy: ±1.5 PSI / ±6°F. That ±6°F tolerance on temperature is worth noting. Bearing failures generate heat progressively — early detection depends on catching smaller temperature differentials. A wider tolerance window means the system may need a bearing to get significantly hotter before triggering an alert.

Why Response Time Matters

A trailer bearing failure doesn't go from normal to catastrophic in one jump. It escalates: slightly elevated temps, then climbing steadily, then rapidly spiking as the grease breaks down and metal-on-metal contact begins. The monitoring system that catches the "slightly elevated" phase gives you time to pull over safely. The one that catches the "rapidly spiking" phase gives you less margin.

Wired sensors with continuous data transmission are inherently faster at reporting temperature changes than wireless sensors that transmit on intervals. In axle monitoring, this isn't a theoretical advantage — it's the difference between catching a problem at mile marker 140 versus mile marker 155.

Trend Intelligence: Data vs. Numbers

Here's where TrailerWatchdog goes somewhere Haloview doesn't follow at all.

The TWD-1500 doesn't just show you current temperature and pressure readings. Its trend intelligence engine analyzes patterns over time — comparing readings across wheel positions, flagging gradual changes that a single-point reading would miss, and identifying the slow degradation curves that precede most bearing failures.

Think of it this way: a snapshot tells you "axle temp is 145°F right now." Trend intelligence tells you "this axle has risen 18°F over the last 45 minutes while the others held steady — something is developing."

Haloview's BT7 displays current readings. That's it. No historical comparison, no cross-wheel analysis, no pattern recognition. You get numbers on a screen, and it's on you to notice if something is trending in the wrong direction while also watching the road, managing traffic, and keeping a 10,000-pound trailer tracking straight.

Connectivity: BT5 Mesh vs. Dedicated Monitor

The two systems take opposite approaches to getting data in front of you.

TrailerWatchdog: Smartphone + Bluetooth 5.0 Mesh

The TWD-1500 uses Bluetooth 5.0 mesh networking to deliver data to your smartphone. This has several implications:

• Mesh networking means sensors can relay data through each other — no single-point-of-failure radio link. If one sensor can't reach the hub directly, it routes through another sensor that can.
• Smartphone display means no extra hardware on your dash. Your phone is already mounted — TWD uses it.
• Software updates improve functionality over time without replacing hardware.
• Alert flexibility: audible, visual, and customizable thresholds.

Haloview: Dedicated 7" Monitor

The BT7 includes a 7-inch dedicated display — primarily because it's a backup camera monitor that also shows TPMS/ATS data. Dedicated hardware has one real advantage: it doesn't depend on your phone battery, Bluetooth pairing, or app updates. But it also means:

• Another device on your dash consuming power and space
• No software intelligence improvements without hardware replacement
• The display serves the camera first — monitoring data shares screen real estate

Price Comparison: What Equivalent Monitoring Actually Costs

Pricing is where the "add-on" model gets expensive fast.

TrailerWatchdog TWD-1500

• TWD Adventure (RV/camper): Starting at $395
• TWD Mariner (boat trailer): Starting at $395
• TPMS + axle temp monitoring included — it's the core product
• Price range $395–$595 depending on configuration and trailer type

Haloview BT7 (Equivalent Setup)

• BT7 base unit (camera + monitor): $475+
• TPMS sensors: included with some bundles
• ATS (axle temp) sensors: $46 each, sold separately
• Full monitoring setup (4 TPMS + 4 ATS): approximately $660

So for equivalent monitoring capability — both TPMS and axle temperature on all wheel positions — TrailerWatchdog is $265 to $395 less expensive than Haloview, depending on configuration. And that's before considering the ongoing cost of replacing CR1632 batteries in four wireless ATS sensors.
