TWD-1500 Installation Guide: Step-by-Step Setup

TWD-1500 Installation Guide: Step-by-Step Setup

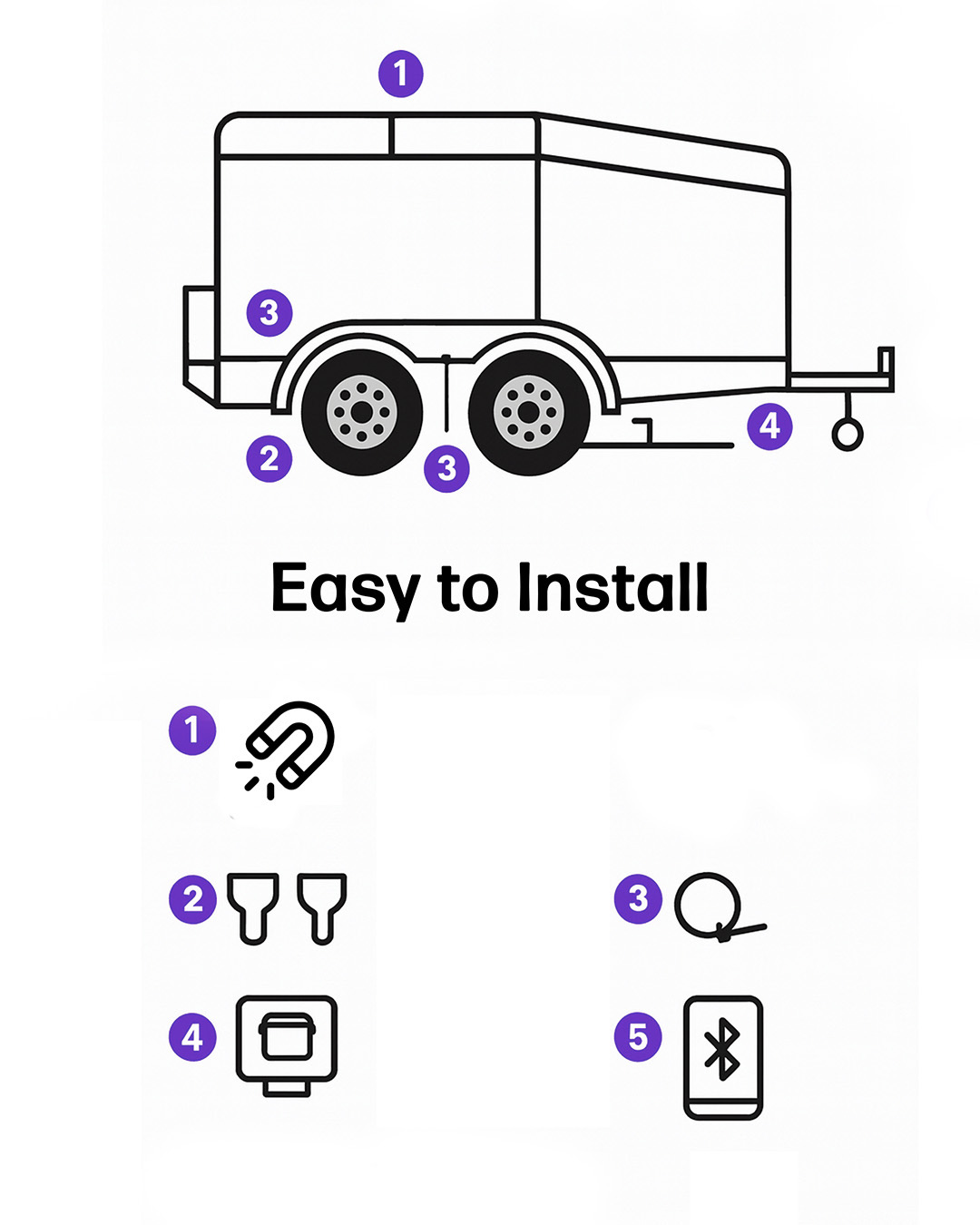

TrailerWatchdog TWD-1500 system installed on a trailer showing master unit, slave modules, and sensor placement

The TWD-1500 is designed so you can install it yourself — no mechanic, no special tools, no drilling holes in your trailer. Most owners have the full system running in 30 to 60 minutes, start to finish.

This guide walks you through every step: unboxing, sensor placement, wiring, and app pairing. Whether you're setting up a single-axle utility trailer or a triple-axle RV, the process is the same. The only difference is how many sensors you're mounting.

If you haven't picked your system yet, check out our full product lineup to find the right fit for your trailer type.

What's in the Box

Every TWD-1500 kit ships with everything you need for installation. Here's what you'll find when you open the box:

  • 1x Master TWD-1500 Unit — The brain of the system. Mounts at the front of the trailer near the hitch. Receives data from all sensors and transmits to your phone via Bluetooth 5.
  • 2x Rear-Mounted Slave Modules — Relay units that extend wireless range to the rear axles. Ensures consistent signal from every sensor, even on long trailers.
  • 1x Wire Harness (Y-Connector) — Connects the master unit and slave modules to your trailer's existing 12V power. No splicing, no aftermarket wiring.
  • 2–8x Magnetic Axle Temperature Sensors — Quantity depends on your axle count. These mount directly to the axle near each bearing hub with 30 lbs of magnetic force. No drilling, no adhesive.
  • 2–12x Screw-On TPMS Tire Sensors — Quantity depends on your tire count. These replace your existing valve stem caps. Hand-tight installation — takes about 15 seconds per tire.
  • 1x Mounting Hardware Packet — Zip ties, brackets, and fasteners for securing units and routing cables.

Verify your kit contents before starting. If anything is missing, contact us at support and we'll get it sorted before you start the install.

Tools You'll Need

The TWD-1500 is a low-tool installation. Here's what to have on hand:

  • Phillips screwdriver — For mounting brackets
  • Clean rag or degreaser — To wipe down axle surfaces before mounting magnetic sensors
  • Smartphone — iPhone or Android with Bluetooth 5 support for the TrailerWatchdog app
  • Tire pressure gauge — To verify baseline PSI before sensor installation (see our complete tire PSI guide for the right pressure for your tires)
  • Flashlight (optional) — Helpful for seeing axle mounting surfaces under the trailer
  • Wire ties (included) — For cable routing

That's it. No drill. No soldering iron. No wiring crimps. If you can screw on a valve cap and use a screwdriver, you can install this system.

Step 1: Plan Your Sensor Placement

Before you touch a single sensor, take five minutes to walk around your trailer and plan where everything goes. This step saves time and prevents re-work.

Axle Temperature Sensors

Each axle gets two magnetic temperature sensors — one on each side, mounted on the axle tube as close to the bearing hub as possible. The sensor should make full contact with the axle's metal surface.

Single-axle trailer (e.g., small boat trailer, utility trailer):

  • 2 axle sensors total — one on the left side, one on the right side of the single axle
  • Position each sensor within 2–4 inches of the bearing hub

Tandem-axle trailer (e.g., travel trailer, horse trailer, car hauler):

  • 4 axle sensors total — one on each end of both axles
  • Same placement rule: as close to the bearing hub as possible on each side

Triple-axle trailer (e.g., large RV, heavy equipment hauler):

  • 6 axle sensors total — one on each end of all three axles

Why close to the hub? That's where bearing failures generate heat first. The closer your sensor sits to the hub, the earlier you'll catch a bearing that's starting to overheat. Even a few minutes of early warning can be the difference between pulling over safely and a catastrophic wheel-end failure on the highway.

TPMS Tire Sensors

Every tire gets one TPMS sensor. It replaces the existing valve stem cap. For dual-tire setups (inner and outer tires), each tire gets its own sensor.

  • Single-axle, single tires: 2 TPMS sensors
  • Tandem-axle, single tires: 4 TPMS sensors
  • Tandem-axle, dual tires: 8 TPMS sensors
  • Triple-axle, dual tires: 12 TPMS sensors

Step 2: Mount the Master Unit

TWD-1500 master unit mounted at the front of a trailer near the hitch connection point

The master unit is the central hub. It collects data from all sensors and slave modules, then transmits everything to your phone over BT5.

Where to mount it:

  • Front of the trailer, near the tongue or A-frame
  • As close to the hitch as practical — this keeps it nearest to your tow vehicle and phone
  • Protected from direct water spray but with clear line of sight to the sky (no metal enclosures)

How to mount it:

  1. Choose your mounting location. The A-frame rail is ideal on most trailers.
  2. Use the included bracket and screws to secure the unit. Two screws, Phillips head.
  3. Make sure the unit is oriented right-side up with the connector port accessible.
  4. Route the wire harness connection point so it's reachable (you'll connect it in Step 4).

Tip: Avoid mounting directly above the trailer's wheel wells or inside a toolbox. You want airflow around the unit and minimal signal interference.

Step 3: Install the Slave Modules

The two slave modules act as wireless relays. They pick up signals from the axle and tire sensors near the rear of the trailer and relay them forward to the master unit. This is what makes the TWD-1500 reliable on longer trailers where Bluetooth range alone wouldn't cut it.

Where to mount them:

  • One slave module on each side of the trailer, toward the rear
  • Mounted to the frame rail, near the rear axle(s)
  • Spaced evenly — left side and right side — so each module covers the sensors nearest to it

How to mount them:

  1. Identify a flat section of frame rail on each side of the trailer, near the rear axle group.
  2. Secure each slave module using the included mounting hardware.
  3. Ensure connector ports face downward or sideways — not upward — to prevent water pooling.
  4. Leave enough wire harness length to reach the Y-connector (next step).

On single-axle trailers, mount both slave modules near that axle — one on each side. On tandem or triple setups, position them near the rearmost axle for maximum sensor coverage.

Step 4: Connect the Wire Harness

The Y-connector wire harness is what powers the entire system from your trailer's existing 12V electrical. No battery packs, no solar panels, no separate power source.

How to connect:

  1. Locate the single end of the Y-connector. This plugs into your trailer's 12V power source — typically the existing wiring at the front of the trailer near the junction box or breakaway switch.
  2. The two branching ends of the Y-connector run to the slave modules.
  3. Route the harness along the trailer frame, securing it with the included zip ties every 12–18 inches.
  4. Keep the harness away from moving parts — axles, suspension components, and brake lines.
  5. Plug each connector firmly into its matching port. You'll feel a click when seated correctly.

Important: The system draws minimal power. It won't drain your trailer battery during storage. However, if you store your trailer for extended periods (months), disconnecting the harness is a good practice.

Step 5: Attach the Magnetic Axle Temperature Sensors

This is the step people are most surprised by — because it's almost too easy. The axle sensors use 30-pound-force rare earth magnets that snap onto bare metal and stay put through highway vibration, washboard roads, and boat ramps.

Protect your trailer

How to install each sensor:

  1. Clean the mounting surface. Use a rag or degreaser to wipe down a 3-inch section of the axle tube near the bearing hub. You want bare metal, not grease or road grime.
  2. Position the sensor. Place it on the axle tube, 2–4 inches from the bearing hub. The flat face of the sensor should sit flush against the axle.
  3. Let the magnet grab. You'll feel the 30-lb pull lock it in place. Give it a firm twist to confirm it's seated flat — no wobble, no air gap.
  4. Check clearance. Make sure the sensor doesn't contact brake components, suspension parts, or anything that moves when the trailer is in motion.

Repeat for every axle position you identified in Step 1.

Pro tip: After installation, grab each sensor and try to slide it along the axle. If it stays locked in place, you're good. The 30-lb magnetic force is more than enough for highway use — these sensors stay put at 80+ mph.

Want to understand why axle temperature monitoring matters? Read our guide on what temperature your trailer bearings should be.

Step 6: Install the TPMS Tire Sensors

The screw-on TPMS sensors are the simplest part of the entire installation. Each one replaces an existing valve stem cap.

How to install each sensor:

  1. Remove the existing valve stem cap from the tire.
  2. Check your tire pressure with a gauge and adjust to the correct PSI before installing the sensor. This gives the system an accurate baseline reading.
  3. Thread the TPMS sensor onto the valve stem by hand. Finger-tight is all you need — do not use pliers or a wrench.
  4. The sensor will begin transmitting automatically once installed. No button press, no activation step.

Repeat for every tire on your trailer.

Note on dual tires: Inner tires on dual setups can be trickier to reach. A valve stem extender (not included) can help if your duals have limited clearance. The TPMS sensors work the same on extended stems.

Note on sensor security: The sensors include anti-theft lock nuts. We recommend installing these — they prevent the sensors from being unscrewed without the included tool, which is especially useful at campgrounds and public storage lots.

Step 7: Download the App and Pair Your System

TrailerWatchdog smartphone app showing real-time tire pressure and axle temperature readings for all trailer positions

With all hardware installed, it's time to bring the system online.

  1. Download the TrailerWatchdog app. Available for iOS (App Store) and Android (Google Play). Search "TrailerWatchdog" — it's free.
  2. Enable Bluetooth on your phone. The TWD-1500 uses Bluetooth 5 for fast, reliable communication.
  3. Open the app and create your account. Email and password — takes 30 seconds.
  4. Power on the system. If your trailer is connected to your tow vehicle (or has battery power), the TWD-1500 powers up automatically.
  5. Tap "Add New System" in the app. It will scan for your TWD-1500 master unit.
  6. Select your system when it appears. The app will walk you through assigning each sensor to a tire and axle position on a visual diagram of your trailer.
  7. Assign sensors. The app detects each active sensor. As you assign them, confirm positions match your physical layout — left front tire, right rear axle, etc.

Once all sensors are assigned, the app displays real-time data from every position. You should see tire pressures and axle temperatures updating live.

Step 8: Configure Alerts and Test the System

The hardware is installed and the app sees your sensors. Now set up your alert thresholds so the system actually protects you on the road.

Setting Alert Thresholds

  1. Tire pressure alerts: Set a low-pressure warning at 10–15% below your target PSI. Set a critical alert at 20% below. The app has recommended defaults — start there and adjust based on your experience.
  2. Axle temperature alerts: The system monitors bearing temperature trends. Set your warning threshold per the app's recommendations. A typical warning point is 150°F, with a critical alert at 180°F — but this depends on your hub type and ambient conditions.
  3. Rapid change alerts: Enable these. A sudden pressure drop or temperature spike is often the first sign of a blowout in progress or a bearing starting to seize.

Testing

Before you hit the road, verify everything:

  • Check all sensor readings — every tire and axle position should show data in the app
  • Walk the trailer — confirm sensor assignments match physical positions (the app's diagram should mirror reality)
  • Test an alert — briefly press a valve core on one tire to release a small amount of air. The app should alert within seconds. Re-inflate to proper PSI after testing.
  • Drive a short distance — take a trip around the block. Watch for axle temperatures rising normally and evenly across positions. Any one position spiking significantly above the others warrants investigation before a long trip.

You're installed. The TWD-1500 is now monitoring your trailer's tires and bearings in real time. Every time you tow, just open the app and let it do its job.

Troubleshooting

Most installation issues have simple fixes. Here are the ones we see most:

Issue Likely Cause Fix
App can't find the master unit Bluetooth off or phone too far from trailer Enable Bluetooth, move within 15 feet of the master unit, and re-scan
A sensor doesn't appear in the app Sensor not active yet or out of range of slave module TPMS sensors activate when threaded onto a pressurized valve. Confirm the tire has air. For axle sensors, check they're within range of a slave module.
No power to the system Trailer not connected to power source Connect trailer to tow vehicle or charge trailer battery. Verify 12V is reaching the Y-connector.
Axle sensor reading "0" or not updating Poor contact with axle surface Remove sensor, clean the axle surface again, and re-mount. Ensure the flat face sits flush — no grease, paint, or rust between the sensor and bare metal.
Intermittent sensor dropouts while towing Slave module placement too far from sensors Reposition the slave module closer to the affected sensors. Ensure mounting is secure — vibration can loosen connections over time.
Pressure reading seems off Sensor not fully threaded or valve core issue Remove sensor, verify tire pressure with a manual gauge, check valve core is tight, then re-install sensor hand-tight.

If you're stuck on something not listed here, reach out to our support team. We've helped owners install on everything from jet ski trailers to 53-foot flatbeds.

Frequently Asked Questions

Can I install the TWD-1500 myself?

Yes — that's the whole point. The system is designed for DIY installation. No mechanic needed, no specialized tools, no drilling. If you can use a screwdriver and screw on a valve cap, you can do this. We built the TWD-1500 so regular trailer owners could install it in their driveway.

How long does installation take?

Most owners complete the full installation in 30 to 60 minutes, including app setup. Single-axle trailers with 2 tires are on the faster end. Triple-axle setups with dual tires take a bit longer simply because there are more sensors to mount. The actual process for each sensor is quick — it's really just walking around the trailer and repeating the same steps at each position.

Do I need to drill holes in my trailer?

No. The master unit and slave modules mount with screws to existing frame surfaces (similar to mounting a small bracket). The axle temperature sensors are fully magnetic — 30 pounds of magnetic force, no drilling, no adhesive. The tire sensors screw onto your existing valve stems. The only fasteners going into your trailer are 2–4 small screws for the mounting brackets, which is no different from mounting a license plate light.

Will the magnetic sensors stay on at highway speed?

Yes. The 30-lb rare earth magnets are rated for sustained highway use. They withstand vibration, bumps, washboard roads, and even boat ramp launches. We have owners running these at 75+ mph on cross-country trips without a sensor coming loose. The key is making sure the axle surface is clean when you mount them — grease or thick paint reduces magnetic contact.

What if I change trailers or sell my current one?

The entire system is removable and reinstallable. Magnetic sensors pull off the axle. TPMS sensors unscrew from valve stems. The master unit and slave modules unbolt. You can move the whole system to a new trailer in 20–30 minutes. Just re-assign sensor positions in the app for the new trailer layout.

Does the system work when my trailer is in storage?

The TPMS tire sensors continue monitoring pressure even in storage — they're battery-powered and always active. The master unit requires 12V power from the trailer, so it needs either a connected tow vehicle or a charged trailer battery to transmit data to your phone. For long-term storage, we recommend disconnecting the wire harness to preserve battery life and checking your tires manually before each trip.
