C-Rated Trailer Tires: Load Range, Capacity, and What It Means for Your Rig
If you've ever stood in a tire shop staring at Load Range C, D, and E options wondering what the letters actually mean, you're not alone. Trailer tire load ratings directly impact how much weight your trailer can safely carry — and getting it wrong can lead to blowouts, uneven wear, and dangerous towing situations.
Load Range C is one of the most common ratings for light-duty and mid-size trailers. Here's what it means, how it compares to other ratings, and how to know if it's the right choice for your setup.
What Does Load Range C Mean?
Load Range C indicates a tire's ply rating equivalent of 6. The letter designates the tire's maximum inflation pressure and corresponding load capacity — not the actual number of plies in modern radial construction. A Load Range C tire typically has a maximum inflation pressure of 50 PSI and carries less weight per tire than D or E rated tires.
The load range system replaced the old ply rating system decades ago, but the relationship is straightforward:
| Load Range | Ply Rating Equivalent | Max PSI (Typical) | Best For |
|---|---|---|---|
| B | 4 | 35 PSI | Very light trailers, lawn equipment |
| C | 6 | 50 PSI | Utility, small boat, light cargo trailers |
| D | 8 | 65 PSI | Mid-size boat, travel trailers, horse trailers |
| E | 10 | 80 PSI | Heavy travel trailers, large boats, equipment |
| F | 12 | 95 PSI | Commercial, heavy-duty applications |
| G | 14 | 110 PSI | Semi-trailers, heavy commercial |
Load Range C Capacity: The Numbers
The actual weight capacity of a Load Range C tire depends on the tire size. Here are common examples:
| Tire Size | Load Range | Max Load (per tire) | Max PSI |
|---|---|---|---|
| ST175/80R13 | C | 1,360 lbs | 50 PSI |
| ST185/80R13 | C | 1,480 lbs | 50 PSI |
| ST205/75R14 | C | 1,760 lbs | 50 PSI |
| ST205/75R15 | C | 1,820 lbs | 50 PSI |
| ST225/75R15 | C | 2,150 lbs | 50 PSI |
Important: Multiply the per-tire capacity by the number of tires to get total tire capacity. A single-axle trailer with two ST205/75R15 Load Range C tires has a total tire capacity of 3,640 lbs. Your GVWR (Gross Vehicle Weight Rating) must not exceed this figure.
Can You Upgrade from Load Range C to D?
Yes, with caveats. You can upgrade to a higher load range in the same tire size to increase capacity. Going from a C to a D in 205/75R15, for example, jumps your per-tire capacity from ~1,820 lbs to ~2,150 lbs. However:
- Higher load range = higher pressure required. You must inflate to the D-range spec (typically 65 PSI) to get the rated capacity.
- Your axle and wheels must support the higher load. Upgrading tires doesn't upgrade axle ratings.
- Never downgrade load range. If your trailer came with D-rated tires, don't put C-rated tires on it.
- Ride quality may change. Higher ply ratings create stiffer sidewalls and a firmer ride.
Why Inflation Pressure Matters More Than Load Range
Here's what most trailer owners get wrong: a Load Range C tire at 40 PSI carries significantly less weight than the same tire at 50 PSI. The load capacity printed on the tire is only valid at maximum inflation pressure. Run it 10 PSI low, and you've lost hundreds of pounds of capacity — often without knowing it.
This is why continuous tire pressure monitoring is critical for trailers. A slow leak during a 4-hour highway run can drop your pressure from 50 to 35 PSI, reducing your tire's load capacity by 20-30% while you're loaded to spec. The tire is now overloaded, overheating, and on its way to failure.
Protect your trailer
-
TWD-1500 Commercial & Fleet — Heavy-Duty Trailer Monitoring
Regular price From $695.00Regular priceUnit price per -

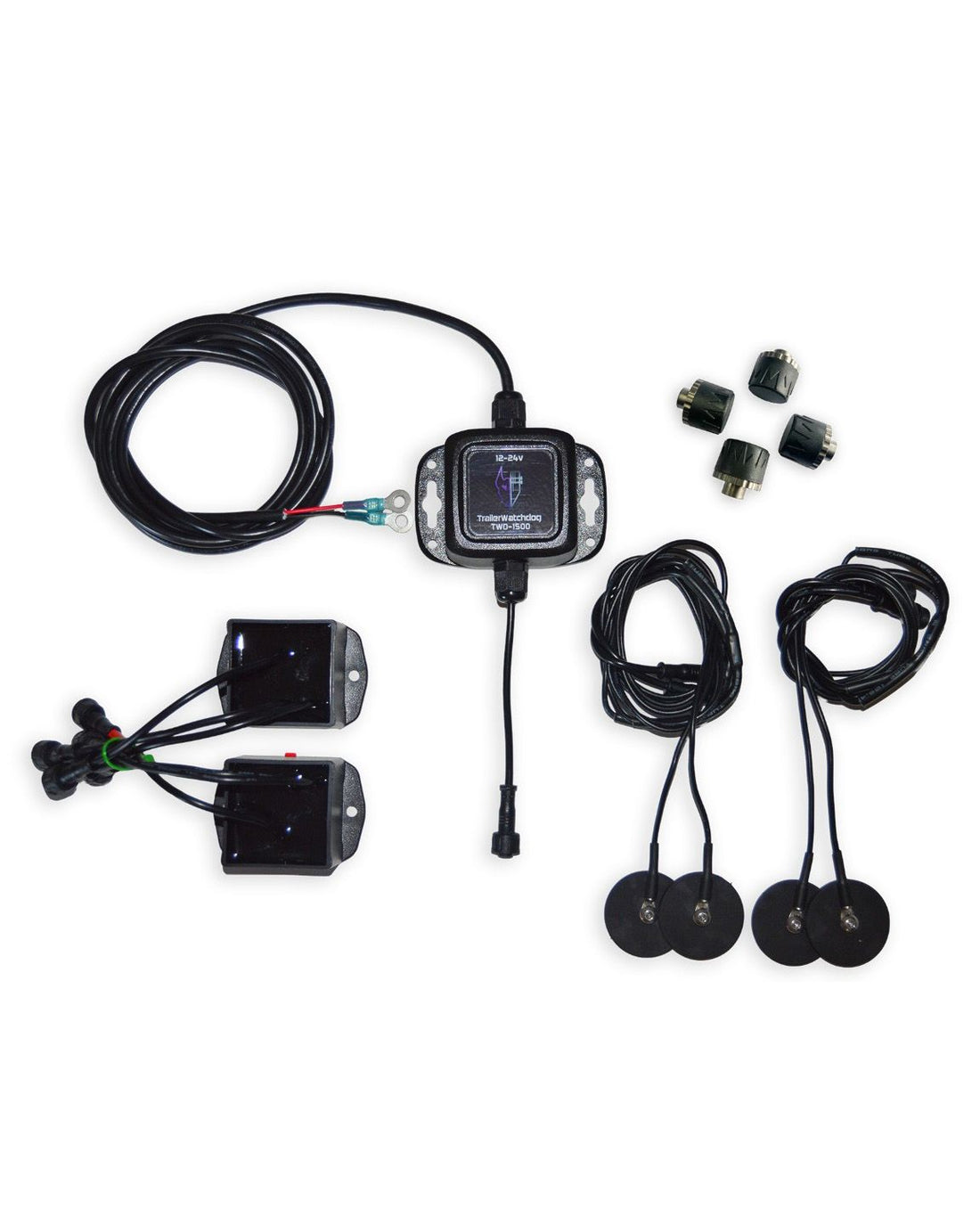

TWD-1500 — Smart Trailer Monitoring System
Regular price From $395.00Regular priceUnit price per
Temperature and Load Range C
Load Range C tires run at lower pressures than D or E tires, which means they generate more sidewall flex under load. More flex means more heat. On a hot summer day pulling a loaded trailer at highway speeds, that heat builds fast. Axle issues — like a failing bearing or dragging brake — add even more thermal load to an already stressed tire.
Monitoring Load Range C Tires on the Road
The TrailerWatchdog TWD-1500 is built exactly for this scenario. It combines TPMS with axle temperature monitoring so you see both pressure and thermal data in real time on your smartphone. For Load Range C tires running at their limits, this is the difference between catching a problem early and dealing with a blowout on the shoulder.
- Pressure alerts — know immediately if a tire drops below safe inflation
- Axle temperature monitoring — catch bearing and brake heat before it destroys tires
- Bluetooth 5.0 — reliable connection from cab to trailer
- IP67 waterproof, magnetic mount — install in minutes with no drilling
- Made in the USA — engineered in Ijamsville, Maryland
Choosing the Right Load Range for Your Trailer
When Load Range C Works
- Utility trailers under 5,000 lbs GVWR
- Small boat trailers (Jon boats, kayak/canoe trailers)
- Landscape and lawn care trailers (light equipment)
- Small cargo/enclosed trailers
When You Need to Step Up
- Travel trailers and campers → Load Range D minimum
- Boat trailers over 4,000 lbs → Load Range D or E
- Horse trailers → Load Range D or E
- Equipment haulers → Load Range E or higher
Frequently Asked Questions
What is the difference between Load Range C and D trailer tires?
Load Range C has a 6-ply equivalent rating with a typical max PSI of 50, while Load Range D has an 8-ply equivalent with a typical max PSI of 65. D-rated tires carry more weight per tire and are built for heavier trailers.
Can I put Load Range D tires on a trailer rated for Load Range C?
Yes, you can upgrade to a higher load range in the same tire size. You'll gain additional load capacity, but you must inflate to the higher load range's specified pressure to realize the capacity increase. Verify your wheels are rated for the higher pressure.
How much weight can a Load Range C tire carry?
It depends on tire size. Common Load Range C trailer tires carry between 1,360 and 2,150 lbs per tire at maximum inflation. Check the specific load rating on your tire's sidewall for the exact figure.
What happens if I run Load Range C tires underinflated?
Underinflation reduces load capacity, increases sidewall flex and heat generation, and dramatically accelerates tire wear. A tire at 40 PSI instead of the rated 50 PSI can lose 20-30% of its load capacity, potentially making it overloaded even within your trailer's GVWR.
Do I need a TPMS for Load Range C trailer tires?
A TPMS is highly recommended for any trailer tire, especially Load Range C tires that run at lower pressures and have less margin for pressure loss. A system like the TWD-1500 that also monitors axle temperature provides complete protection against the most common causes of tire failure.
Protect Your Trailer with Smart Monitoring
Load Range C tires have less margin for error than higher-rated tires. Don't leave pressure to guesswork. The TrailerWatchdog TWD-1500 monitors tire pressure and axle temperature in real time — catching problems before they become blowouts. IP67 waterproof, magnetic no-drill install, Bluetooth 5.0, and made in the USA.
