Outside edge tire wear on a trailer is one of the most common — and most misdiagnosed — problems in towing. Owners blame the tires, the road, or bad luck. In reality, outside wear almost always points to a specific, fixable mechanical issue. Ignoring it doesn't just burn through tires faster — it creates conditions that increase blowout risk.
What Causes Outside Edge Tire Wear?
| Cause | Frequency | Fix Difficulty | Cost to Fix |
|---|---|---|---|
| Underinflation | Very Common | Easy | Free (add air) |
| Overloading | Common | Easy | Free (reduce load) |
| Axle misalignment | Common | Moderate | $200–$500 |
| Worn/loose wheel bearings | Common | Moderate | $75–$300/side |
| Bent axle | Less Common | Hard | $400–$800 |
| Worn suspension components | Moderate | Moderate | $150–$400 |
Diagnosing Each Cause
1. Underinflation — The #1 Culprit
When a tire runs low, the center of the tread lifts off the road while the shoulders carry all the weight. Outside wear often dominates because of how trailer axles distribute load during turns.
How to confirm: Check cold tire pressure against the sidewall maximum. Trailer tires should run at max PSI — not the lower "recommended" pressure used for passenger tires. If you're 10+ PSI below max, underinflation is your problem.
The data: A tire running 20% underinflated loses 25% of its tread life and runs 30–40°F hotter. 85% of tire blowouts are caused by underinflation.
2. Overloading
Exceeding the tire's load rating causes the same sidewall flex as underinflation. This is especially common on utility trailers where loads shift and on tongue-heavy setups that overload the rear axle.
How to confirm: Weigh your trailer at a CAT scale. Compare per-axle weights to the GAWR (Gross Axle Weight Rating) on the VIN plate.
3. Axle Misalignment
A misaligned axle points wheels slightly outward (toe-out), scrubbing the outside edge with every revolution. This happens after hitting curbs, potholes, or from factory defects on budget trailers.
How to confirm: Measure from each hub face to the trailer frame on both sides. If measurements differ by more than 1/8", the axle is misaligned.
4. Worn or Loose Wheel Bearings
Bearing play allows the wheel to tilt on the spindle. Even 1/16" of play translates to measurable camber change under load, grinding the outside edge harder. This often appears on only one side.
How to confirm: Jack up each wheel and rock it top-to-bottom. Any detectable play means bearing wear. Also check for heat — a failing bearing runs 20–60°F hotter than adjacent positions.
5. Bent Axle
A bent axle changes wheel camber permanently. If you've hit a curb hard or overloaded the trailer, the axle may have a slight bend invisible to the eye but measurable at the tire.
How to confirm: Place a straight edge across both tires on the same axle. If the distance is wider at the bottom than the top (negative camber), the axle is bent.
Protect your trailer
-

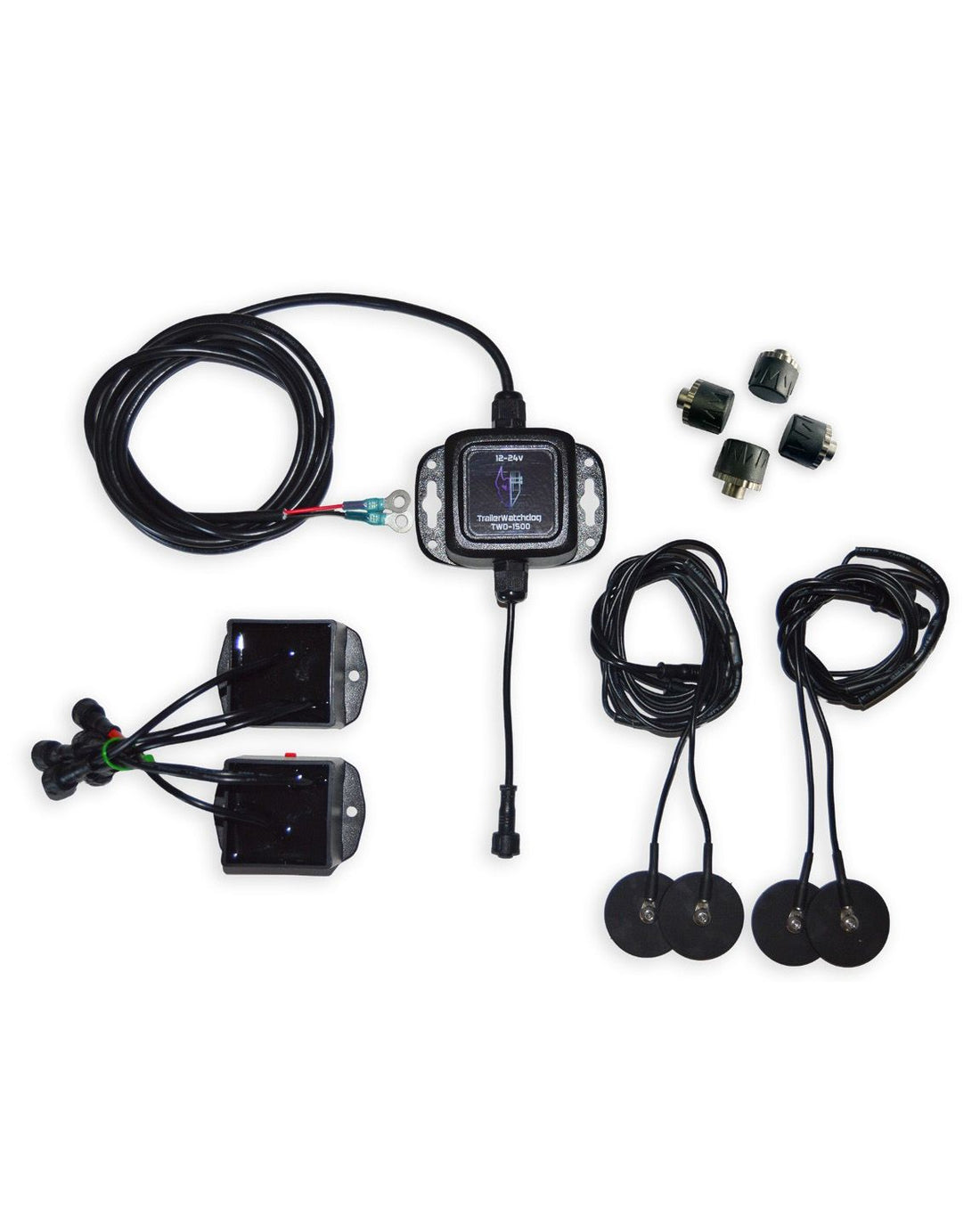

TWD-1500 — Smart Trailer Monitoring System
Regular price From $395.00Regular priceUnit price per -
TWD-1500 Commercial & Fleet — Heavy-Duty Trailer Monitoring
Regular price From $695.00Regular priceUnit price per
6. Worn Suspension Components
Leaf springs sag over time, changing ride height and axle geometry. Worn bushings allow the axle to shift. Broken springs cause uneven loading. All manifest as outside edge wear.
How Monitoring Reveals What Inspections Miss
Visual tire inspections show you the result of a problem that's been building for hundreds of miles. Real-time monitoring catches the cause while it's happening:
| Wear Cause | What Monitoring Reveals |
|---|---|
| Underinflation | Low PSI alert before wear begins |
| Bearing wear | Elevated axle temp on affected position |
| Brake drag | Abnormal temp spike on one wheel |
| Overloading | Higher-than-normal temps across all positions |
The TWD-1500 monitors tire pressure and axle temperature simultaneously. A pressure drop of just 5 PSI triggers an alert — catching the problem when it's a $0 air fill instead of a $150 tire replacement.
Fix vs. Ignore: The Real Cost
| Action | Cost |
|---|---|
| Correct tire pressure | Free |
| Repack bearings | $75–$150/axle |
| Align axle | $200–$500 |
| Replace prematurely worn tire | $100–$200 per tire |
| Blowout from ignored wear | $1,800–$4,000 |
Protect Your Trailer with Smart Monitoring
The TrailerWatchdog Utility combines TPMS + axle temperature monitoring in one magnetic, IP67-rated sensor. Made in the USA. Starting at $395.
Shop the Utility →Frequently Asked Questions
Why do my trailer tires wear on the outside only?
The most common causes are underinflation, overloading, axle misalignment, or worn wheel bearings. Start by verifying cold tire pressure against the sidewall maximum, then check for bearing play and alignment.
Should trailer tires be inflated to the maximum PSI?
Yes. Unlike passenger tires, ST (Special Trailer) tires should be inflated to the maximum pressure on the sidewall. This provides full rated load capacity and prevents sidewall flex that causes edge wear.
How do I check trailer axle alignment?
Measure from each hub face to a fixed point on the trailer frame. Measurements should be equal within 1/8 inch. A string line along the frame with perpendicular measurements to each wheel face gives more precision.
Can worn wheel bearings cause uneven tire wear?
Yes. Bearing play allows the wheel to tilt on the spindle, changing the effective camber angle. This pushes more load onto the outside edge, causing accelerated wear.
How does the TWD-1500 help prevent uneven tire wear?
It monitors tire pressure continuously, alerting to drops as small as 5 PSI. Since underinflation is the #1 cause of outside edge wear, maintaining correct pressure is the single most effective prevention. Axle temperature monitoring also catches bearing wear early.
