How to Install a Trailer TPMS: Step-by-Step Guide for Every Trailer Type

Installing a Trailer Tire Pressure Monitoring System (TPMS) is one of the most impactful safety upgrades you can make for your trailer. Whether you tow a boat, camper, horse trailer, or equipment trailer, getting real-time tire pressure and temperature data into your cab takes less than an hour and costs less than one tire replacement.

This guide walks you through everything — from unboxing to your first alert — so you can install with confidence.

What You'll Need

Before you begin, make sure you have:

  • Your TPMS kit (sensors, display unit, antenna, wiring harness)
  • Basic hand tools (socket set, screwdrivers, pliers)
  • Wire cutters/strippers and electrical tape or heat shrink
  • A tire pressure gauge (for verification)
  • About 45–60 minutes of uninterrupted time

    • Step 1: Plan Your Sensor Placement

Each TPMS sensor mounts directly onto a valve stem. Before you start removing anything, walk around your trailer and identify all tire positions:

  • Single-axle trailers: 2 sensors (one per tire)
  • Dual-axle trailers: 4 sensors
  • Triple-axle trailers: 6 sensors
  • Multi-axle gooseneck/5th wheel: 6–8 sensors depending on configuration

Mark each position with chalk or tape so you don't lose track. Write down which sensor corresponds to which position — you'll need this during pairing.

Pro tip: Take a photo of each tire position before you start. This makes pairing and future troubleshooting much easier.

Step 2: Mount the Sensors

This is the hands-on portion of the installation. Work on one tire at a time:

  1. Remove the valve cap from the tire
  2. Unscrew the existing valve stem core (use a valve core tool or small pliers)
  3. Remove the old valve stem if it's a rubber stem type
  4. Install the TPMS sensor onto the valve stem — most modern systems use a direct-mount design that threads directly onto the valve
  5. Hand-tighten firmly, then give an additional quarter-turn with pliers (don't overtighten — you don't want to strip the threads)
  6. Replace the valve cap (if the sensor includes one)
  7. Verify the sensor is seated straight and not cross-threaded

Important: Do not use sealants or tire-mounting lubricants on the sensor threads — they can damage the electronics. Install dry, as the manufacturer intended.

Step 3: Route the Antenna Cable

The antenna receives signals from all sensors and sends them to the display unit. Proper routing is critical for reliable signal reception.

  1. Locate the best mounting position for the antenna — ideally near the roofline or upper trailer frame, away from metal obstructions
  2. Run the antenna cable along the inside of the trailer frame, using existing clips or zip ties to secure it every 12–18 inches
  3. Avoid routing near sharp edges, moving parts, or exhaust components
  4. Leave enough slack at both ends for connection to the display unit and antenna mount
  5. Test signal strength by temporarily powering on the display before finalizing cable routes — you want all sensors reporting

    6. Signal tip: Metal blocks wireless signals. If your trailer has a metal roof or heavy insulation, mount the antenna on the outside or use a roof penetration mount for best reception.

    Step 4: Connect the Display Unit

The display unit is your command center — it shows real-time pressure and temperature readings and triggers alerts.

  1. Find a mounting location within easy view while driving — dash mount, suction cup, or bracket (varies by system)
  2. Connect the antenna cable to the display unit
  3. Power the display unit — most connect to your tow vehicle's accessory power (cigarette lighter/12V outlet) or hardwire into the ignition circuit
  4. If hardwiring: connect red wire to ignition-switched 12V, black wire to ground, and follow the manufacturer's wiring diagram for any additional connections

    5. Step 5: Pair the Sensors

Every TPMS system requires sensor-to-display pairing. This is where knowing your tire positions (from Step 1) pays off:

  1. Turn on the display unit — it should enter pairing mode automatically
  2. Follow the system's pairing procedure — most use a "learn" button or automatic detection
  3. Pair each sensor one at a time, starting with the position you marked
  4. Verify each sensor shows up with the correct tire position and reports valid pressure/temperature readings
  5. Complete the pairing sequence for all sensors

If a sensor doesn't pair, check:

Protect your trailer

  • Battery is installed correctly (polarity)
  • Sensor is within range of the antenna (move it closer temporarily)
  • Battery has charge (new sensors should be fresh)

    • Step 6: Verify and Test

Before hitting the road, verify everything works:

  1. Pressure check: Compare each sensor reading to your manual tire gauge. They should match within ±1–2 PSI
  2. Temperature check: All tires should read within 5–10°F of each other at ambient temperature
  3. Alert test: Most systems have a built-in test mode — trigger it to verify the display's visual and audible alerts work
  4. Drive test: Take a short drive (5–10 minutes) and watch for any sensor dropouts. A healthy system maintains connection throughout

    5. Understanding Your Alerts

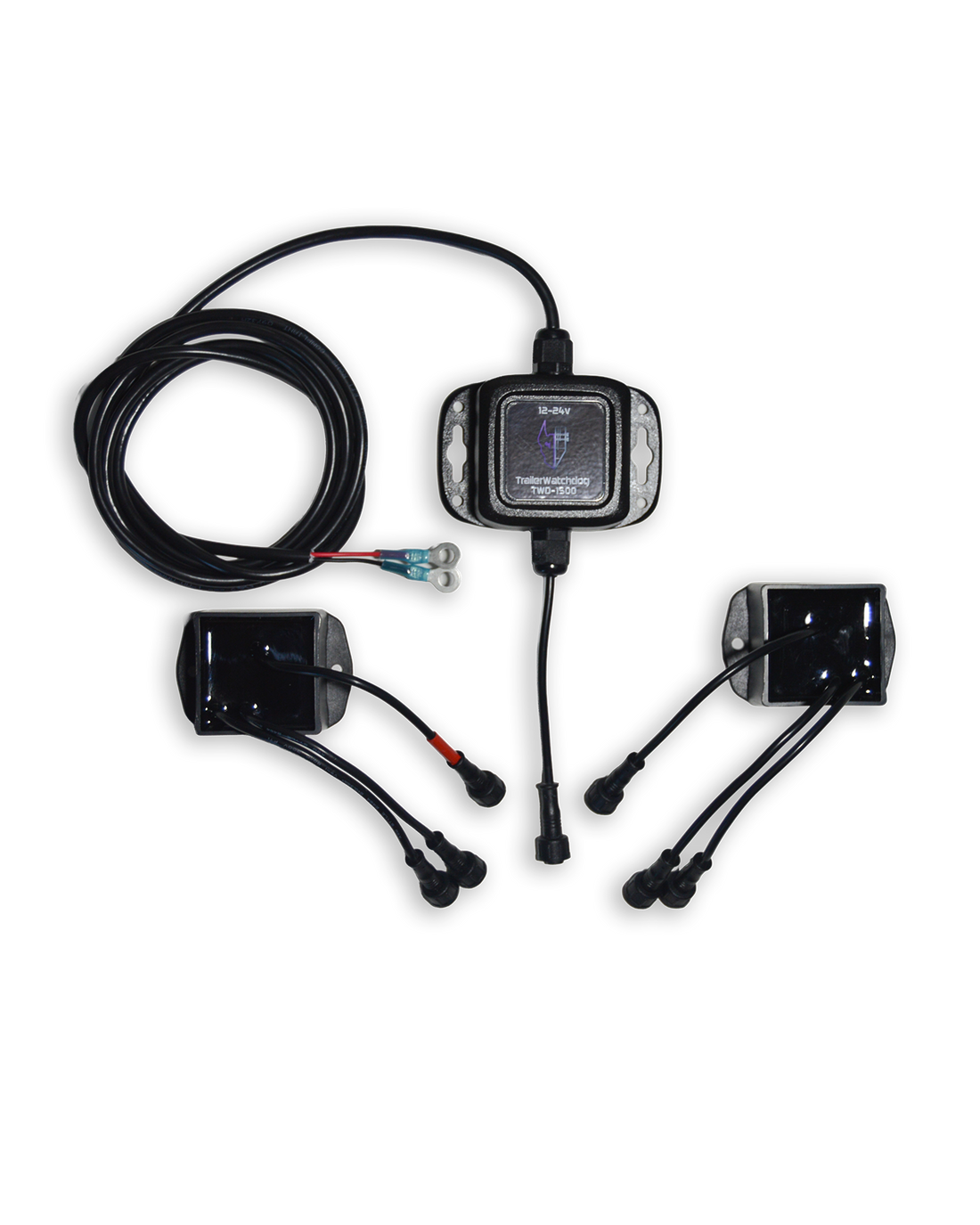

A quality TPMS like the TrailerWatchdog TWD-1500 goes beyond simple threshold alarms. Here's what to watch for:

Pressure alerts: Triggered when any tire drops below your set minimum. This is the most common alert and means you should check for a slow leak or puncture as soon as safely possible.

Temperature alerts: Triggered when tire temperature exceeds safe limits. A rapidly rising temperature while driving can indicate a bearing problem, brake drag, or internal tire damage — even if pressure looks fine.

Differential alerts (TWD-1500 exclusive): The TWD-1500 compares temperatures and pressures across all sensors. If one tire runs 30°F hotter than its opposite, or one axle significantly outpaces another, you get an alert even if absolute values are "normal." This catches asymmetric problems that basic TPMS systems miss entirely.

Maintenance After Installation

Your TPMS is set up and running. Here's what to keep in mind going forward:

  • Check sensor batteries annually — most last 3–5 years, but regular verification prevents surprise failures
  • Include TPMS in your pre-trip checklist — a 30-second glance at the display takes less time than checking tire pressure manually
  • Update sensor batteries before rotation — if you rotate tires, the sensor positions change and you may need to update the display mapping
  • Keep the manual — store it with your trailer's documentation for pairing instructions during sensor replacement

    • Why This Matters

The average trailer tire replacement costs $150–$300 per tire. A bearing failure caused by a hot tire can destroy a hub, axle, and possibly the entire trailer frame — costing $2,000–$5,000+ in repairs and downtime.

Your TPMS costs a fraction of one tire. But it gives you visibility into problems that develop silently over hundreds of miles, long before they become catastrophic.

The investment isn't in the hardware — it's in the 20 minutes of warning you get before a $3,000 problem becomes a $15,000 one.

Ready to Install?

The TWD-1500 is the only system on the market combining intelligent tire pressure monitoring with axle temperature trend analysis. It's built in America, designed for every trailer type, and installs in under an hour.
