Why TPMS Alone Isn't Enough: The Case for Axle Monitoring

Why TPMS Alone Isn't Enough: The Case for Axle Monitoring

If you tow a trailer, you've probably heard that a TPMS (Tire Pressure Monitoring System) is the single most important safety upgrade you can make. And honestly? That's not wrong. A good TPMS catches slow leaks, flags rapid pressure loss, and warns you before an overheated tire turns into a highway blowout.

But here's what nobody's talking about: a TPMS monitors your tires. It does not monitor your axle. And some of the most catastrophic trailer failures — bearing seizures, hub fires, wheel-off events — happen at the axle, not the tire. Your TPMS won't see them coming until it's far too late.

This isn't fear-mongering. It's physics. Let's walk through exactly what your TPMS can and can't do, what's actually failing when trailers have catastrophic breakdowns, and why combined tire + axle monitoring is the only real answer.

What Your TPMS Actually Monitors

A standard trailer TPMS measures two things at each tire:

  • Tire pressure — typically updated every 4–6 seconds via sensors mounted on the valve stem or inside the tire
  • Tire temperature — measured at the valve stem or inner tire surface

That's it. Two data points per tire. And for tire-specific problems, those two data points are genuinely valuable:

Problem How TPMS Detects It Alert Type
Slow leak (nail, valve stem, bead seal) Gradual pressure drop over minutes/hours Low pressure alert
Rapid pressure loss (blowout, puncture) Sudden pressure drop Rapid leak alert
Overinflation (heat, overfilling) Pressure exceeds set threshold High pressure alert
Overheated tire (speed, load, road surface) Tire temperature exceeds threshold High temp alert
Flat tire at rest (campsite, storage) Pressure below minimum on pre-trip check Low pressure alert

This is real, measurable protection. Only 44% of trailer tires are properly inflated at any given time, and 48% of all roadside service calls are tire-related. A TPMS that catches a slow leak at mile 30 instead of a blowout at mile 200 is absolutely worth having.

But notice what's conspicuously absent from that table: anything happening between the tire and the trailer frame.

The Blind Spot: What Happens at the Axle

Your wheel end is a complex assembly: spindle, bearings (inner and outer), hub, brake drum or rotor, seal, and the axle itself. Every one of these components can fail — and when they do, the failure generates heat at the axle, not at the tire.

Here's what your TPMS cannot detect:

Failure Type Where Heat Generates TPMS Detection? Typical Outcome
Bearing wear/failure Inner/outer bearing race on spindle ❌ None until very late stage Bearing seizure, wheel lockup, wheel-off
Hub fire Hub assembly, brake drum ❌ None until tire ignites Complete wheel-end loss, trailer fire
Dragging brake Brake drum/rotor surface ❌ None until heat migrates to tire Warped drum, seized caliper, fire
Seal failure (grease loss) Bearing/spindle interface ❌ No pressure or temp change at tire Dry bearing → metal-on-metal → seizure
Axle overload/stress Axle tube and spindle ❌ No tire-level indication Axle fatigue, bending, eventual fracture

Every single one of these failures is invisible to a tire-mounted sensor. The physics are simple: heat takes time to conduct from the spindle, through the hub, through the wheel, through the bead, and into the tire's air cavity where a TPMS sensor sits. By the time that thermal energy reaches your TPMS sensor, the failure at the axle is already well advanced.

Anatomy of a Bearing Failure: The Timeline Your TPMS Misses

Bearing failure is the most common axle-level failure on trailers, and it follows a predictable progression. Understanding this timeline makes it clear why tire-only monitoring leaves a dangerous gap.

Stage What's Happening Axle Temp Tire Temp TPMS Alert?
Normal operation Bearings properly greased, rolling freely 100–140°F Ambient + road heat —
Early wear Bearing surface pitting, increased friction 150–180°F Normal range ❌ No
Grease breakdown Excess heat degrades lubricant, friction accelerates 200–250°F Slightly elevated ❌ No
Metal-on-metal Bearing rollers scoring race, extreme friction 300–400°F Rising, but below most alert thresholds ❌ No (or marginal)
Imminent failure Bearing welding to spindle, smoke visible 500°F+ Finally spiking ⚠️ Maybe — too late
Catastrophic failure Seizure, wheel lockup, or wheel separates from axle 600°F+ Irrelevant 🔥 Tire destroyed

Look at the "TPMS Alert?" column. The first four stages — the stages where pulling over and getting a tow would cost you $200–$500 and an afternoon — produce zero TPMS alerts. The system is blind to the entire warning window.

An axle temperature sensor, by contrast, would flag the transition from Stage 1 to Stage 2. You'd know your bearing was running warm hundreds of miles before catastrophic failure. That's not a marginal improvement. That's the difference between a bearing repack and a complete wheel-end rebuild on the side of I-95.

Real-World Scenarios

These aren't hypotheticals. These are the failure modes that fill trailer forums, roadside assistance logs, and NHTSA reports every towing season.

Scenario 1: Bearing Seizure at Highway Speed

You're pulling a 24-foot travel trailer at 65 mph on a summer trip. The passenger-side inner bearing has been developing a micro-pit for the last 800 miles. Today, friction finally overwhelms the grease. The bearing temperature climbs from 140°F to 300°F over 20 minutes. Your TPMS shows normal pressure, normal tire temp. No alert.

At 400°F, the grease is gone. Metal grinds on metal. The spindle is scoring. Still no TPMS alert — the heat hasn't reached the tire cavity yet. Five minutes later, the bearing welds to the spindle. The wheel locks. At 65 mph, the tire shreds instantly, the hub assembly tears free, and you're fighting to keep the trailer from jackknifing.

With axle monitoring: You'd have received a temperature alert 20+ minutes earlier, when the axle temp crossed 180°F. Pull over, call a mobile mechanic, get a bearing repack. Cost: $150–$300. Instead: $2,500–$4,000 in hub, spindle, axle, tire, and fender damage — plus a tow.

Scenario 2: Hub Fire from a Dragging Brake

Your electric brakes applied normally at the last stop, but one caliper didn't fully release. Now it's dragging — just enough friction to generate heat, not enough to feel it in the tow vehicle. The brake drum hits 350°F. Then 500°F. Brake fluid boils. Grease in the hub ignites.

By the time heat conducts through the wheel and reaches your TPMS sensor, the hub is already on fire. Other drivers are honking and flashing their lights. You pull over to find flames coming from behind the wheel.

With axle monitoring: The axle temperature spike would trigger an alert within minutes of the brake starting to drag. A quick stop and inspection catches the stuck caliper before any thermal damage occurs.

Scenario 3: Wheel-Off Event

A bearing that's been failing for weeks finally disintegrates. The outer bearing race spins on the hub. The inner seal is long gone. The spindle nut walks off or the retaining cotter pin shears. The entire wheel assembly — tire, wheel, hub, drum — separates from the axle at speed.

This is every tower's worst nightmare, and it happens more often than you'd think. A separated wheel becomes an unguided projectile on the highway. Your TPMS? It just shows a "sensor lost" error for that position. Not exactly a helpful diagnostic.

Protect your trailer

With axle monitoring: The progressive temperature rise over the days and miles leading up to failure would have been clearly visible in trend data. The system would flag the abnormal thermal pattern long before mechanical failure.

The Numbers Don't Lie

Let's put this in perspective:

  • 85% of trailer tire blowouts are preventable — and TPMS addresses most of the tire-side causes. But bearing-related failures are among the most expensive and dangerous incidents, and TPMS doesn't touch them.
  • Average cost of a roadside wheel-end failure: $1,800–$4,000. That includes the tow, the parts, the labor, and often a night in a hotel you didn't plan for. A bearing repack caught early? $40–$150 in parts.
  • 48% of roadside service calls are tire-related — but the ones that cause trailer fires, multi-vehicle incidents, and five-figure repair bills? Those are overwhelmingly axle and hub failures.

A TPMS addresses the high-frequency, moderate-severity failures (low tire, slow leak). Axle monitoring addresses the lower-frequency, high-severity failures (bearing seizure, hub fire, wheel-off). You need both.

Why No Other Major TPMS Brand Offers Axle Monitoring

If axle monitoring is so obviously important, why don't TireMinder, TST, EEZTire, or any of the other big names offer it?

The short answer: they're tire companies, not trailer monitoring companies.

Traditional TPMS manufacturers designed their systems around a single sensor type — the valve-stem-mounted tire pressure sensor. Their hardware platforms, their apps, and their alert logic are all built for tire data. Adding axle temperature monitoring isn't a firmware update. It requires:

  • A completely different sensor type (temperature sensor mounted to the axle/hub, not the valve stem)
  • A mounting system that works on trailer axles without drilling (magnetic mount, high-force retention)
  • An app and alert system that correlates tire data with axle data
  • Trend intelligence that tracks temperature patterns over time, not just instantaneous readings

Most TPMS brands would need to redesign their entire platform to offer this. So they don't. They sell tire sensors and call it "trailer monitoring." It's monitoring part of your trailer.

For a detailed comparison of how the major systems stack up, see our Best TPMS for Trailers in 2026 roundup and our head-to-head TrailerWatchdog vs. TireMinder breakdown.

The Solution: Combined TPMS + Axle Temperature Monitoring

This is exactly why TrailerWatchdog exists. The TWD Adventure and every other TWD system combine standard TPMS sensors with dedicated axle temperature sensors — giving you complete wheel-end coverage from one system, one app, one dashboard.

Here's what that looks like in practice:

Capability TPMS-Only Systems TrailerWatchdog
Tire pressure monitoring ✅ ✅
Tire temperature monitoring ✅ ✅
Axle/hub temperature monitoring ❌ ✅
Bearing failure early warning ❌ ✅
Dragging brake detection ❌ ✅
Hub fire early warning ❌ ✅
Temperature trend intelligence ❌ ✅
No-drill magnetic axle sensor mount N/A ✅ (30 lbs magnetic force)
Made in USA Varies (most are imported) ✅ (Ijamsville, MD)

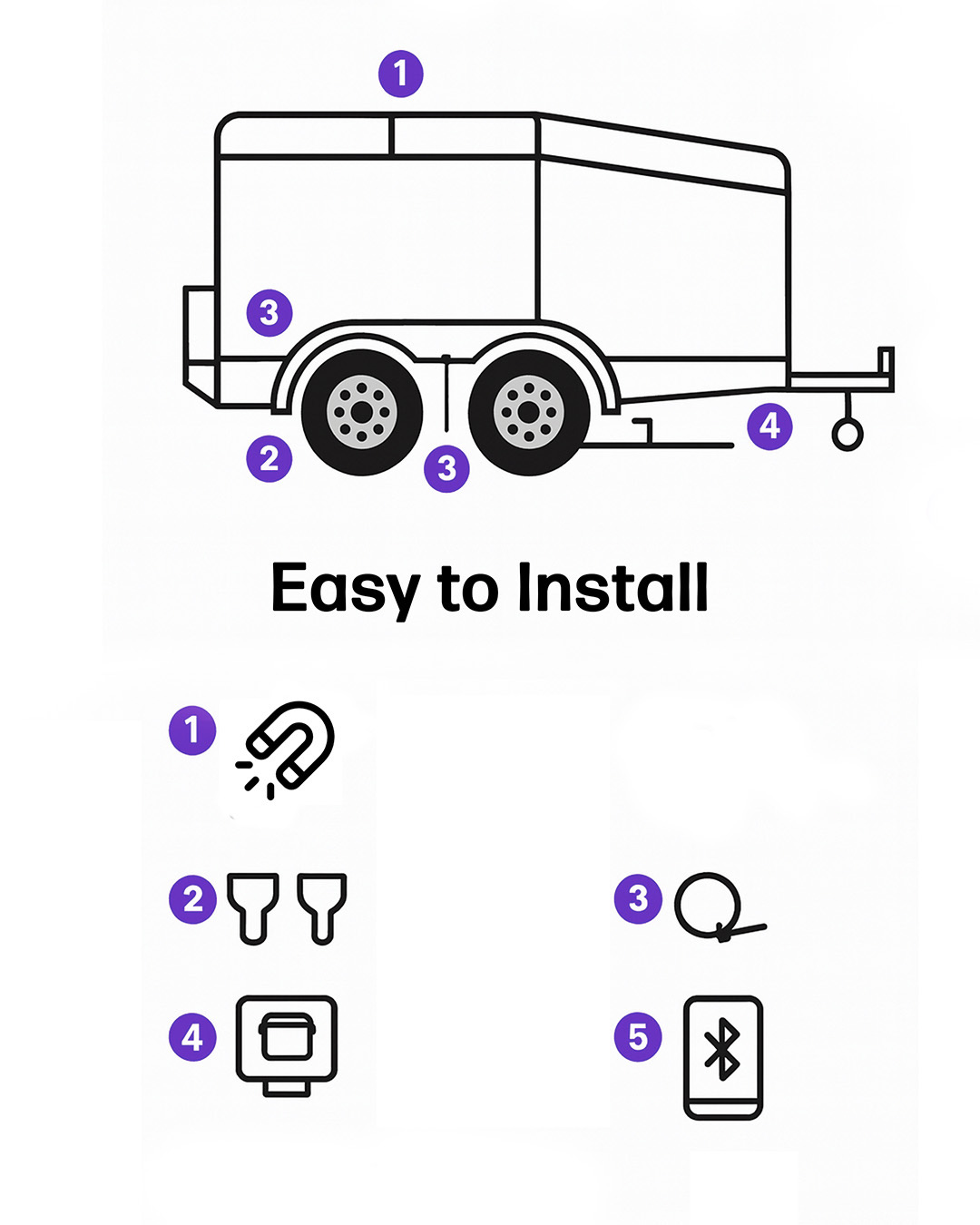

The TWD-1500 uses Bluetooth 5 mesh networking and no-drill magnetic axle sensors with 30 lbs of retention force. The sensors mount directly to your spindle or hub assembly in minutes — no welding, no drilling, no modifications to your axle. And because the system tracks temperature trends over time, it doesn't just tell you what's happening right now. It spots patterns developing over miles, so you get alerted before a warm bearing becomes a seized bearing.

For a deeper look at what bearing temperatures actually mean and when to worry, read our bearing temperature monitoring guide.

The Bottom Line

TPMS is not optional. If you're towing without tire pressure monitoring, you're gambling with every mile. Get a TPMS.

But don't stop there. A TPMS monitors your tires. Your trailer's most dangerous failure modes happen at the axle — where your TPMS is completely blind. Bearing failures, hub fires, dragging brakes, wheel-off events — these are the incidents that cause trailer fires, highway accidents, and four-figure repair bills. And they all generate heat at the axle long before your tire sensor registers anything unusual.

Combined tire + axle monitoring isn't a luxury. It's the complete picture. It's the difference between knowing your tires are fine and knowing your trailer is fine.

See the TWD Adventure — Complete Tire + Axle Monitoring from $395 →

Frequently Asked Questions

Can't I just touch my hubs at rest stops to check for bearing heat?

You can — and you should, if you don't have axle monitoring. But this method has serious limitations. You can only check when stopped, which means you're sampling temperature at one point in time. A bearing that runs hot under load at 65 mph may cool enough during a 10-minute fuel stop to feel normal. More importantly, "too hot to touch" means the hub is already above 150°F — well into the danger zone. Continuous monitoring catches the temperature rise while you're driving, when intervention is most effective.

My TPMS has temperature alerts. Doesn't that cover bearing failures?

TPMS temperature alerts measure tire temperature — the air inside the tire or the valve stem area. A failing bearing generates heat at the spindle and inner bearing race, which must conduct through the hub, wheel, and tire bead before reaching the air cavity where your TPMS sensor sits. This thermal lag means your TPMS might see a temperature spike 15–30 minutes after the bearing has already entered a dangerous failure mode. That's not early warning — that's late confirmation. Read our bad trailer bearings guide for the full breakdown of failure stages.

How do axle temperature sensors mount without drilling?

TrailerWatchdog's axle sensors use high-force magnetic mounts rated at 30 lbs of retention force. They attach directly to the spindle nut or hub face — any ferrous metal surface on the wheel end. No drilling, no welding, no permanent modifications. Installation takes minutes per wheel position. The sensors are IP67 rated, so they handle rain, road spray, and — for boat trailer owners — submersion during launch and retrieval.

Do I need axle monitoring on every type of trailer?

Every trailer with wheel bearings benefits from axle temperature monitoring. That said, some trailers are at higher risk: boat trailers (water exposure accelerates bearing wear), horse trailers (heavy loads, frequent braking), travel trailers and RVs (long highway miles, seasonal storage that can cause bearing issues), and heavy equipment haulers (extreme loads stress bearings and axles). TWD offers purpose-built systems for each: the Mariner for boats, the EquiGuard for livestock, and the LoadMaster for heavy hauling.

What does a TrailerWatchdog system cost compared to a bearing failure?

TWD systems start at $395. A roadside wheel-end failure averages $1,800–$4,000 when you factor in the tow, emergency parts markup, labor, potential hotel stay, and lost time. A preventive bearing repack — the kind you'd schedule after a TWD axle temp alert catches early wear — runs $40–$150 in parts. The system pays for itself the first time it catches a problem early. And unlike a roadside breakdown at 2 AM on a rural highway, a scheduled service stop is safe, predictable, and on your terms.
