Trailer Hub Fires: What Causes Them and How to Prevent Them

Trailer Hub Fires: What Causes Them and How to Prevent Them

A hub fire can consume a trailer in minutes. The cause is almost always the same — and it's completely preventable if you know what to watch for.

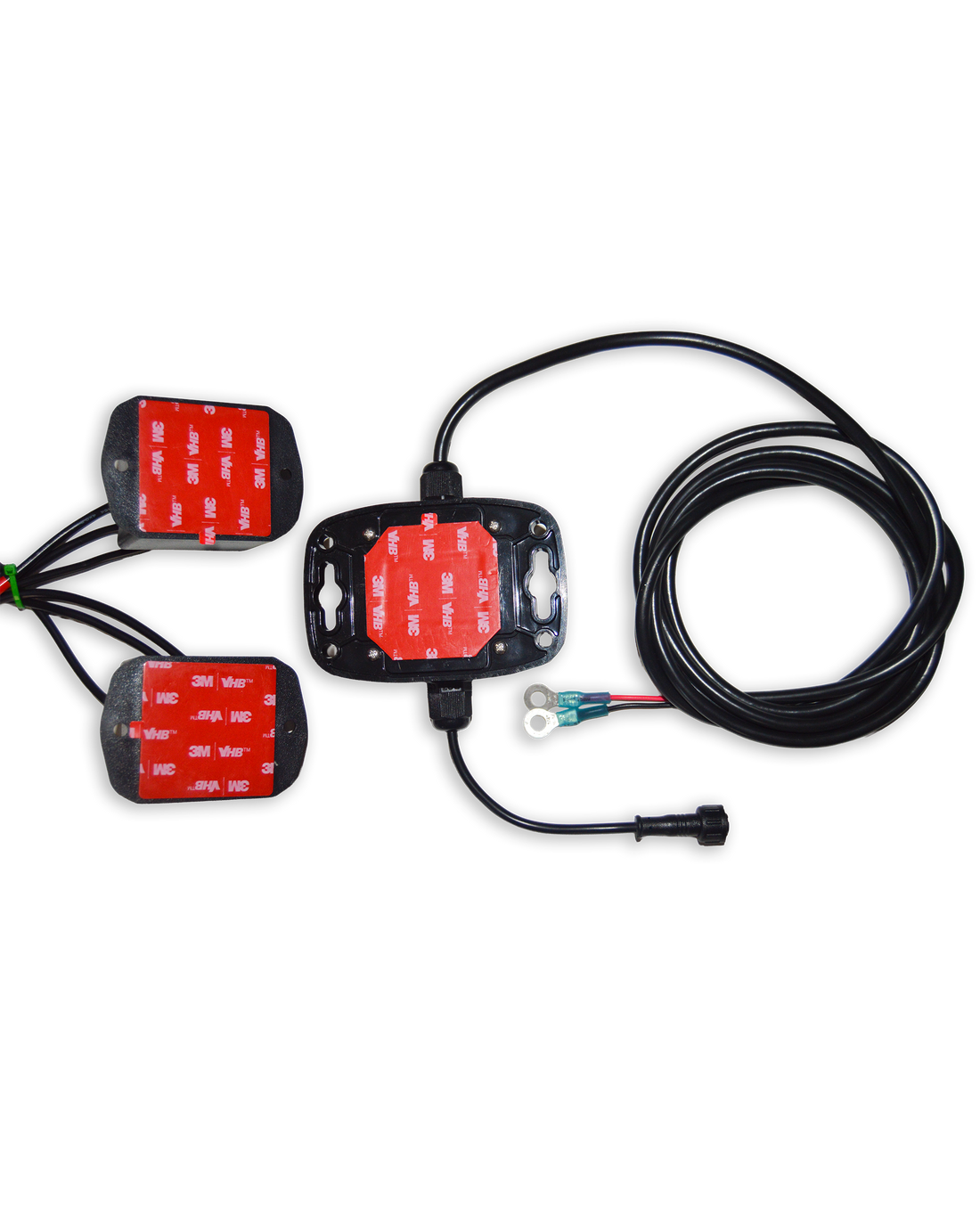

TrailerWatchdog axle temperature sensor for hub fire prevention

What Is a Trailer Hub Fire?

A trailer hub fire starts at the wheel bearing assembly and spreads outward. It's not an electrical fire. It's not a brake fire — at least not initially. It's a mechanical failure that generates enough heat to ignite grease, brake fluid, rubber, and eventually the trailer itself.

If you've ever seen a trailer engulfed on the highway shoulder — flames licking out from a wheel well, thick black smoke pouring across lanes — you've seen the end result of a bearing that was crying for help for the last 50 miles. Nobody heard it.

Hub fires are one of the most common causes of total trailer loss outside of collision. They happen to boat trailers in July, RVs on cross-country trips, horse trailers heading to shows, and work trailers on routine hauls. The common thread: a failing bearing that wasn't caught in time.

What Causes a Trailer Hub Fire? The Failure Chain

A hub fire follows a predictable sequence. Understanding this chain is the key to prevention — because every link is an opportunity to intervene.

Stage 1: Bearing Degradation

It starts with the bearing. Contaminated grease, water intrusion, improper packing, or simple wear causes the rollers and races to develop friction beyond normal operating levels. At this stage, the hub temperature starts climbing — maybe 20-40°F above normal. You can't feel this from the driver's seat. You can't hear it over road noise. But it's happening.

Common causes of initial bearing degradation:

  • Water intrusion — Especially boat trailers submerged at ramps. Hot hubs plunged into water create vacuum that pulls water past seals.
  • Insufficient or contaminated grease — Missed maintenance intervals, wrong grease type, or water-contaminated grease.
  • Improper preload — Bearings adjusted too tight generate excess friction. Too loose allows impact damage to races. Bearing play matters.
  • Age and fatigue — Metal fatigues. Races pit. Even properly maintained bearings have a service life.

Stage 2: Heat Escalation (The Critical Window)

As the bearing deteriorates, friction increases exponentially. Hub temperature climbs from a normal operating range of 130-170°F to 250-350°F. At this point:

  • Bearing grease begins to break down and thin out, reducing lubrication further
  • The bearing cage may deform, causing rollers to skew
  • Metal-on-metal contact begins generating extreme heat
  • The hub assembly becomes too hot to touch — but you're doing 60 mph and have no idea

This is the critical intervention window. At 250-350°F, the situation is serious but recoverable. Pull over, let it cool, get it serviced. Continue driving, and you enter the point of no return.

This is exactly where axle temperature monitoring saves trailers — and lives. A sensor on the hub detects this heat escalation and alerts you while there's still time to stop safely.

Stage 3: Grease Ignition

Standard trailer bearing grease has a drop point around 350-500°F, depending on type. Once the hub reaches this range, the grease doesn't just break down — it ignites. Bearing grease is petroleum-based, and a hub at 400°F+ provides more than enough heat to sustain combustion.

At this point, you may see smoke from the wheel area. The grease is burning inside the hub assembly, and the temperature is climbing rapidly toward 600-800°F.

Stage 4: Brake Fluid and Seal Failure

If the trailer has hydraulic brakes, the brake lines and wheel cylinder are directly adjacent to the hub. Brake fluid (DOT 3/4) has a boiling point around 400-500°F. At hub temperatures above 500°F, brake fluid boils, seals fail, and fluid leaks onto surfaces already hot enough to ignite it.

This is where a localized bearing fire becomes a wheel fire. Brake fluid is flammable, and it spreads the combustion zone from the hub outward to the brake drum, backing plate, and wheel assembly.

Stage 5: Tire and Structure Fire

A tire in direct contact with a 600°F+ hub assembly doesn't last long. The bead area heats first, the tire sidewall begins to degrade, and eventually the tire catches fire. Once rubber is burning, you have a sustained, intense fire that produces thick black smoke and temperatures exceeding 1,000°F.

From tire ignition, the fire spreads to the trailer structure — wiring, frame coating, cargo, and body panels. A fully involved wheel fire can spread to the entire trailer in 5-10 minutes.

The Temperature Progression: From Normal to Total Loss

Hub Temperature What's Happening Action Required
130-170°F Normal operating temperature None — healthy bearing
170-220°F Elevated — early bearing stress or heavy load Monitor closely; reduce speed
220-300°F Bearing degradation accelerating; grease thinning Pull over at next safe opportunity
300-400°F Grease approaching ignition; metal-on-metal likely Pull over immediately — do not continue
400-500°F Grease ignition; brake fluid boiling Stop. Disconnect trailer. Call 911 if smoke/flame.
500°F+ Active fire — tire ignition imminent or underway Evacuate. Fire extinguisher if safe. Call 911.

The difference between "pull over and get it serviced" and "total loss" is often less than 15 minutes of driving time. That's why monitoring matters — not after the fact, but in real time.

Protect your trailer

Warning Signs You Might Catch (But Probably Won't)

Without monitoring equipment, the warning signs of an impending hub fire are subtle and easy to miss while driving:

  • Unusual smell — Hot grease has a distinctive acrid smell, but you're unlikely to notice at highway speed with windows up and AC running.
  • Trailer pulling or wandering — A seizing bearing creates drag on one side. Subtle at first, easily attributed to wind or road crown.
  • Smoke from wheel area — By the time you see smoke in your mirror, you're already at Stage 3 or beyond.
  • Other drivers flashing or honking — Often the first alert drivers get. By then, the fire may already be self-sustaining.
  • Hot hub on rest stop check — If you can't hold your hand near the hub for 5 seconds, you have a problem. But most people don't check, and "hand near the hub" isn't exactly precise diagnostics.

The hard truth: most drivers discover a hub fire when they see flames or get flagged by other motorists. By that point, the damage is done. This is why a tire-pressure-only TPMS is not enough — it can't see what's happening at the hub.

It Happens More Than You Think

Hub fires aren't rare anomalies. They happen across every trailer category:

  • Boat trailers are among the highest-risk due to repeated water submersion at launch ramps. The thermal shock of a hot hub hitting cold water pulls moisture past seals, contaminating grease and accelerating bearing failure.
  • Horse and livestock trailers face devastating consequences — a hub fire with live animals on board is an emergency of the highest order. Equestrian forums are full of accounts from owners who lost trailers this way.
  • Travel trailers and RVs on long highway hauls sustain high speeds for extended periods, giving a marginal bearing enough time and heat to progress through the full failure chain.
  • Utility and equipment trailers often run heavy loads with infrequent maintenance, creating the perfect conditions for bearing overload.

Highway departments and fire departments across the country respond to trailer fires regularly. Many states report trailer fires as a top-five cause of highway closures during peak travel seasons.

How Axle Temperature Monitoring Catches It Early

Here's the fundamental problem: the critical window between "concerning" and "catastrophic" is measured in minutes, and none of the warning signs are reliably detectable from the driver's seat at highway speed.

An axle temperature monitoring system closes that gap completely. A sensor mounted on or near the hub tracks temperature continuously and alerts you the moment it exceeds a threshold — long before grease ignition, long before smoke, and long before fire.

The TrailerWatchdog TWD-1500 was designed specifically for this use case. Its magnetic axle sensors mount directly to the hub area with 30 lbs of holding force — no drilling, no permanent modification. They're IP67 waterproof (critical for boat trailer owners who submerge at the ramp) and communicate via Bluetooth 5.0 to your smartphone in real time.

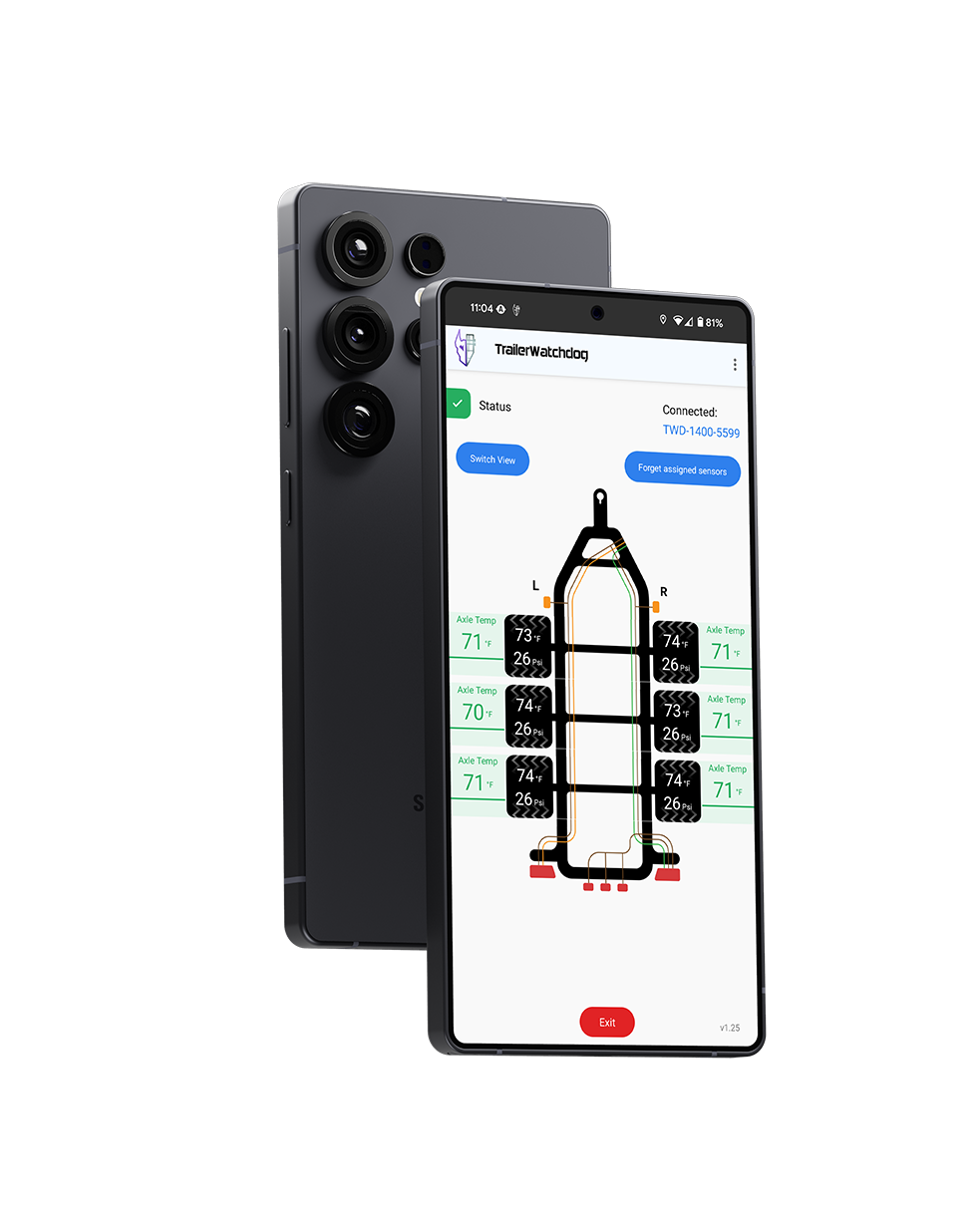

When the TWD-1500 detects a hub temperature climbing above normal, you get an alert on your phone. Not when the fire starts — when the heat starts. That's the difference between a $200 bearing service and a total loss.

And because the TWD-1500 also monitors tire pressure and temperature, you get complete wheel-end coverage. Bad bearings that haven't yet reached critical temperatures can sometimes be detected through unusual tire temperature patterns — one tire running hotter than its partner on the same axle.

Related Reading

Don't Wait for Smoke

The TWD Adventure combines tire pressure monitoring + axle temperature monitoring in one system. Catch bearing failures before they become hub fires — from your phone, in real time.

Shop the TWD Adventure →

Magnetic install. IP67 waterproof. Made in USA. Starting at $395.

Hub Fire Prevention: What Every Trailer Owner Should Do

  1. Repack bearings on schedule — Every 12 months or 12,000 miles for standard trailers. Every season for boat trailers. No exceptions.
  2. Inspect seals during service — Grease seals are cheap. Replacing them proactively during repacking is smart insurance.
  3. Use quality grease — Marine-grade lithium complex or synthetic for boat trailers. Match the grease type to your application. Never mix grease types.
  4. Check bearing play regularly — Jack up each wheel and check for lateral and vertical play. Excessive play means worn bearings.
  5. Install axle temperature monitoring — The only way to detect hub heat in real time while driving. This is the single most effective prevention tool.
  6. Don't submerge hot hubs — Boat trailer owners: let hubs cool before backing into the water, or invest in bearing protectors.
  7. Carry a fire extinguisher — A 5-lb ABC extinguisher rated for grease fires. Mount it accessible, not buried in cargo.

Frequently Asked Questions

What causes a trailer hub fire?

Trailer hub fires are caused by bearing failure that generates extreme heat. As the bearing deteriorates, friction increases, heating the hub to temperatures that ignite bearing grease (350-500°F). The fire then spreads to brake fluid, the tire, and the trailer structure. The root cause is typically water-contaminated grease, missed maintenance, improper bearing adjustment, or simple bearing fatigue.

How hot does a trailer hub get before it catches fire?

Normal operating temperature for a trailer hub is 130-170°F. Bearing grease ignites at approximately 350-500°F depending on type. By 400°F, a fire is either imminent or underway. The window between "elevated temperature" and "fire" can be as little as 10-15 minutes at highway speed. See our bearing temperature monitoring guide for detailed ranges.

Can a trailer TPMS detect a hub fire?

A standard tire-pressure-only TPMS cannot reliably detect a hub fire in its early stages. The heat starts at the bearing and hub, which a tire sensor doesn't measure. By the time tire pressure or temperature changes enough to trigger an alert, the fire may already be underway. This is why TPMS alone is not enough — you need dedicated axle temperature monitoring.

How do I know if my trailer wheel bearings are going bad?

Warning signs include: humming or growling noise at speed, excessive play when you rock the jacked-up wheel, visible grease leaking from the hub, discolored (blue/brown) grease indicating overheating, and uneven tire wear. Read our full guide on how to identify bad trailer wheel bearings.

How often should trailer bearings be repacked?

Standard recommendation is every 12 months or 12,000 miles, whichever comes first. Boat trailers that are submerged at launch ramps should have bearings inspected and repacked every season at minimum. Trailers used in wet, dusty, or heavy-load conditions may need more frequent service. Always inspect seals and races during repacking.
