Your trailer's wheel hubs run hot. That's normal. But there's a temperature range where "normal" becomes "warning" becomes "failure," and most trailer owners have no way to know where they are on that scale until something goes wrong.
A trailer hub temperature monitor closes that gap. It gives you real-time visibility into what's happening at the wheel end — the exact place where 80% of trailer breakdowns originate. This guide covers how hub temperature monitoring works, what's normal versus dangerous, how to compare monitoring systems, and what to look for when choosing one.
The wheel hub is where three failure modes converge: bearings, brakes, and tires. And all three fail the same way — by getting hot before they fail catastrophically.
You can't feel any of this from the tow vehicle. You can't hear it over road noise. By the time you see smoke or smell burning, you're looking at a roadside repair that averages $1,800 to $4,000 — and in the worst cases, a hub fire that destroys the trailer.
Hub temperature is the earliest measurable signal. Get that data, and you have a 30-60 minute head start on every wheel-end problem your trailer will ever face.
There are two mainstream approaches to monitoring hub temperature on a trailer:
A small sensor with a strong magnet mounts directly onto the outside face of each wheel hub. The magnet holds it in place (typical hold force is 20-30 lbs). An infrared or contact-based temperature element inside the sensor reads the hub metal temperature. Wireless transmitter sends the reading to your phone or a dedicated display.
Pros: No drilling, no wiring, no permanent modification. Installs in seconds per wheel. Sensors move with the wheel — they read hub temperature directly.
Cons: Sensor is exposed to road debris and weather. Battery-powered (typically 1-2 years per battery). Must be waterproof-rated if used on boat trailers.
A temperature probe threads into a hole drilled through the axle spindle, or bolts onto a fixture on the axle. The probe touches the inner bearing race directly.
Pros: Reads bearing temperature directly (rather than hub metal, which is a proxy for bearing temperature). Not exposed to road debris.
Cons: Requires drilling into the axle — permanent modification, professional installation typically required. Wired to a chassis-mounted controller. If you sell the trailer, the modifications stay.
Adhesive labels that permanently change color when exposed to a specific temperature. Common on commercial trucks for compliance inspections.
Pros: No electronics. No batteries. Cheap ($1-5 per sticker).
Cons: Passive only — tells you that the hub reached a temperature at some point in the past, not what it's doing right now. Useless for real-time alerts. No way to catch a failure in progress.
Normal operating hub temperature depends on ambient conditions, load, and speed. Here's a working reference range:
| Hub Temperature | Status | What It Means |
|---|---|---|
| 80–120°F | Normal (light load, cool weather) | Healthy operation. Continue. |
| 120–180°F | Normal (loaded, highway speed, warm weather) | Healthy operation. Continue. |
| 180–220°F | Elevated — investigate | Possible early bearing wear, mild brake drag, or high ambient contributing to heat. Check at next stop. |
| 220–275°F | Warning — pull over soon | Something is wrong. Bearing wear, dragging brake, or under-inflated tire. Diagnose before continuing. |
| 275°F+ | Danger — pull over immediately | Failure imminent. Bearing may seize, grease may ignite. Do not tow further. |
| 400°F+ | Fire risk | Approaching flash point of standard wheel bearing grease. Stop, cool the hub, do not restart until diagnosed. |
The single most useful signal isn't the absolute number — it's the differential. If three hubs read 140°F and one reads 190°F, that 50°F gap is the alarm, even though 190°F on its own might not seem catastrophic. Something is different about that wheel.
Not all monitors are created equal. If you're evaluating options, these features separate systems that actually protect from ones that just log data.
A monitor that shows you temperature only when you actively open an app is useful for post-trip analysis but useless for prevention. Look for a system that pushes alerts to your phone the moment a threshold is crossed, even when the app is in the background.
Absolute temperature matters less than trend. A hub climbing steadily from 150°F to 210°F over 20 minutes is a bigger red flag than a hub sitting at 200°F for the entire trip. Look for a system that watches rate of change, not just absolute values.
Under-inflated tires contribute to hub heat. Bad bearings increase tire load. The two failure modes interact. A system that monitors both — in one app, on one screen — gives you complete wheel-end visibility. Two separate systems (one for tires, one for axles) is less useful than one integrated system.
Different axles run different temperatures. A dual-axle setup might have inner axles running hotter than outer, or vice versa, depending on your trailer geometry. Set thresholds per wheel so alerts fire based on your normal, not a generic factory default.
Boat trailer wheels get submerged. Look for IP67 waterproof rating minimum. Non-waterproof sensors on a boat trailer are a one-season purchase.
The best monitor is the one you actually install. Magnetic no-drill sensors take about 30 seconds per wheel. Drill-in systems require pulling the hubs, drilling the axle, wiring a chassis-mounted controller, and typically a shop visit. Match the effort to your comfort level.
Sensors run on small batteries. Check the spec — 1-2 years is typical, some cheaper systems die in a season. Also check whether the batteries are user-replaceable (good) or the whole sensor is disposable (bad long-term economics).
If you upgrade phones or the app maker goes out of business, does your setup survive? Systems that store your calibration and tire-pairing data in the cloud (not just on one device) are more future-proof.

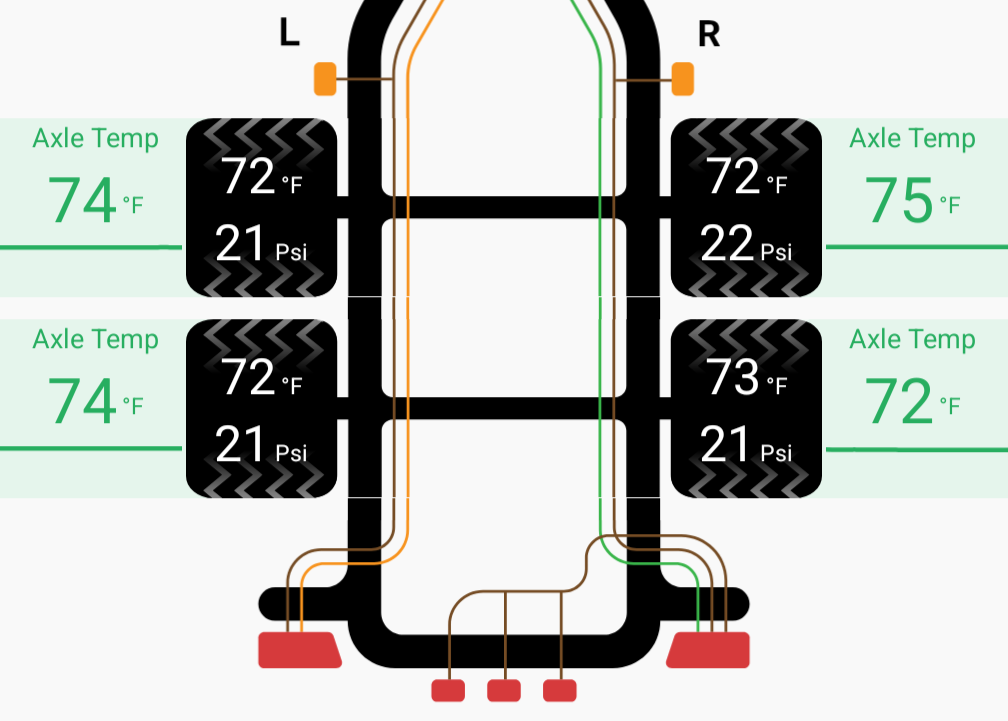

The TWD-1500 was engineered specifically around hub temperature monitoring as the primary safety data stream, with tire pressure as a companion metric.
Real-time trailer monitoring
The TWD-1500 monitors axle temperature and tire pressure with magnetic hub sensors and real-time phone alerts. No drilling, no wiring, no permanent modifications. See what your wheel ends are doing before your nose or your eyes tell you.
A lot of trailer owners buy a tire pressure monitoring system (TPMS) thinking it covers wheel-end health. It doesn't. TPMS watches tire pressure and tire temperature. Neither one tells you what the bearing or brake is doing.
Comparison:
| Failure mode | TPMS alone | Axle temperature monitor | Combined (like TWD-1500) |
|---|---|---|---|
| Under-inflated tire | ✅ Detected via pressure | ⚠️ Only if heat is high enough | ✅ Detected early |
| Blowout in progress | ✅ Rapid pressure drop | ❌ Not detected directly | ✅ Rapid pressure drop |
| Bearing wear / failure | ❌ No signal | ✅ Rising hub temperature | ✅ Rising hub temperature |
| Dragging brake | ❌ No signal | ✅ Elevated hub temperature | ✅ Elevated hub temperature |
| Overloaded axle | ⚠️ Sometimes via tire temp | ✅ Elevated hub temperature | ✅ Elevated hub temperature |
| Hub fire precursor | ❌ No signal | ✅ Early temperature climb | ✅ Early temperature climb |
TPMS is necessary. It's not sufficient. Adding hub temperature closes the gap.
Above 220°F sustained is a warning. Above 275°F is a stop-and-diagnose event. Above 400°F is fire risk territory. See the reference table above for detail.
Yes — they measure different things. TPMS watches tire pressure. Axle temperature monitoring watches the bearing and brake. Both can fail independently. Owners who have only TPMS are protected against tire failures but blind to the bearing and brake side of things, which is the more common cause of expensive roadside failures.
Yes, if you choose a magnetic-mount system. Any trailer with a metal hub face — which is essentially all trailers — can accept magnetic sensors in seconds with no modification. Drill-in systems require compatibility with your specific axle spindle.
Depends on the system. TWD-1500 sensors run 1-2 years per battery. Cheaper systems can die in a single towing season. Check the spec sheet before buying.
Good systems use threshold-plus-differential logic: an alert fires when a hub is both above absolute temperature AND running significantly hotter than the other hubs on the same trailer. A hot summer day raises all four hubs uniformly. A dragging brake raises one. The system tells them apart.
No. Stickers tell you after the fact that a hub reached a temperature. They don't warn you while it's happening. Useful for maintenance inspections; useless for real-time protection.
Yes — the standard TWD-1500 supports up to a tandem-axle trailer. The Commercial & Fleet model supports up to 8 axles for larger commercial rigs.
Hub temperature is the single most predictive signal on your trailer. Bearings, brakes, and tires all telegraph their problems through heat before they fail visibly. A monitor that gives you that data in real time — with alerts, not just a chart to look at later — turns "we didn't see it coming" into "we saw it in time."
If you tow anything valuable, or you tow far from home, or you tow with cargo or passengers behind you, real-time hub temperature monitoring is the highest-leverage investment you can make in wheel-end safety.
